Pickup system

Overview

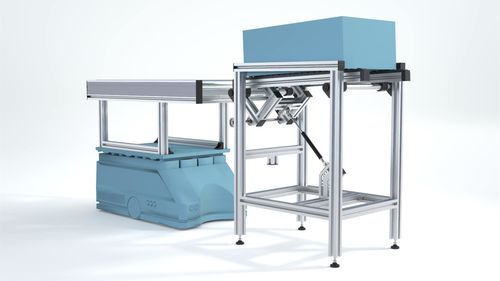

The Karakuri pick-up station is a passive transfer solution for AGVs that enables automatic handing-over of small load carriers and cardboard boxes without additional motors or sensors. An integrated gas spring provides a controlled release and folding action when an AGV docks, allowing simple mechanical transfer.

Key features

• Integrated gas spring for smooth release and folding action
• Passive operation: no motor or electronic control required for the basic transfer
• Designed for small load carriers and cardboard boxes (automatic transfer to AGV)
• Modular concept for scalable and economical integration

Your benefits

• Simplified installation and maintenance — no drive/control needed
• Short delivery time: typical lead time 2 weeks
• Cost-effective solution thanks to standardized modular components

Similar application examples

• AGV top modules and modular docking stations for automated material flow

Technical characteristics / specifications

• Product name: Karakuri pick-up station for AGVs
• Transfer principle: mechanical/passive transfer using an integrated gas spring
• Actuation: gas spring providing controlled release and folding on dock
• Control requirements: no motor or electronic control required for basic function
• Supported loads: small load carriers and cardboard boxes for automatic transfer to AGV
• Design: modular/standardized system enabling economical implementations; typical delivery ~2 weeks
