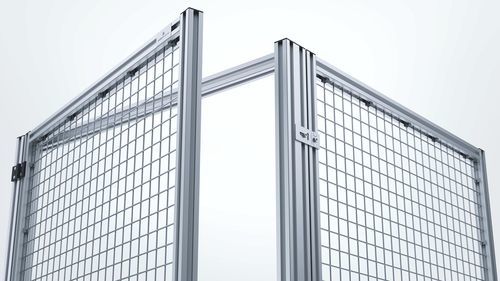

Safety cage

Overview
The Robotunits Safety Fence System for machines and robots provides a modular, time-saving solution based on pre-assembled elements. The enclosures comply with international standards and are designed to deliver machine protection and structural stability. The system can be configured individually and integrates with the Robotunits modular automation kit.

Main product groups

• Safety Fence Basic System (standard panels, single/double/sliding doors)
• Safety Fence Allround System (allround panels, posts, doors and sliding doors)
• Safety Fence Accessories (weld mesh, panels, clips, retainers, profiles, corner pieces, fasteners, hinges, door hardware, interlocks, floor brackets, anchor bolts)

All-inclusive offer

• Included in price and delivery: ready-to-plug, completely pre-assembled elements and doors
• Modular fence system compatible with the Robotunits modular range
• Choice of predefined standard widths and heights
• Special solutions available on request

Ready to install

• Easy installation of fully assembled panels and doors
• Minimal on-site assembly time

Form-fitted grid integration

• Impact rating: up to 80 kg at 10 km/h (for specified panel designs)
• Reduced number of parts
• Functional, consistent design

High flexibility

• Simple disassembly for fast, large-area access
• Fence run possible at any angle for each element

Maximum conservation of resources

• One person sufficient for setup on site
• Single Allen key size required for assembly
• Reusable components

Fully integrated Safety Fence System

• Continuous, uniform 14 mm T-slot
• Full compatibility with the complete Robotunits modular system
• Simple and time-saving attachment options
• Use of standardized elements (panels, posts, doors, profiles, fasteners)

Save time, cut cost

• No heavy on-site construction work required
• Efficient one-person installation and simple panel selection
• Easy adjustment and setup on site
• Single order code for an assembled panel
• Easy attachment of accessories (safety switches, interlocks, handles, etc.)

Accessories & typical components

• Weld mesh and panel types (standard and special widths)
• Basic panels, allround panels, posts, single/double/sliding doors
• Panel profiles, panel blocks, retainers and weld mesh clips
• Door hardware: handles, magnet holders, latches, catches, stops, hinges, rollers, sliding tracks
• Fasteners and brackets: fence fasteners, 90° fasteners, bolts, screw retainers, floor brackets, anchor bolts, leveling bases
• Integration accessories: safety interlocks, closers, catches and mounting plates

Configurator / Design
Individual design and configuration available to match machine layout, required clearances and access needs. Configurator supports predefined standard widths and heights as well as custom solutions.

Technical specifications

• Modular system with continuous 14 mm T-slot
• Pre-assembled panels and doors for plug-and-play installation
• Impact rating: up to 80 kg at 10 km/h (depending on panel type)
• Compatibility: full compatibility with Robotunits modular components and accessories
• Installation: one-person setup possible; minimal on-site assembly time
• Materials & finish: modular extrusions, welded mesh panels, standardized hardware
• Typical components: panels (standard/special widths), doors (single/double/sliding), posts, floor brackets, anchor bolts, clamps, profile elements, panel blocks
• Resource efficiency: reusable components; single Allen key for assembly
• Variants: Basic System, Allround System and a comprehensive Accessories range
