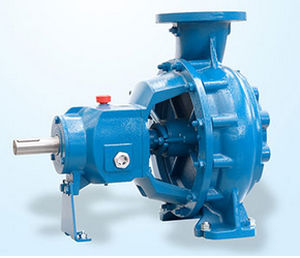

Chemical pump RKC-RKCS series
electricvortexfor the chemical industry

chemical pump
chemical pump
chemical pump
Add to favorites
Compare this product


Characteristics

Fluid
for chemicals
Operation
electric
Technology
vortex
Domain
for the chemical industry, for the food industry, for the paper industry
Applications
sewage, process
Other characteristics
heavy-duty
Flow

Min.: 0 m³/s (0 ft³/s)

Max.: 0.1944 m³/s (24,720.2667 ft³/s)

Pressure

Min.: 0 bar (0 psi)

Max.: 10 bar (145.038 psi)

Head

Min.: 0 µm

Max.: 75,000,000 µm (246'00")

Description

is designed with a special casing in order to generate the pumping vortex. In this way the liquid flows through the pump without entering the impeller vanes. This avoids clogging problems with viscous liquids containing solid particles and fibrous materials, and liquids with air. It is suitable for use in the pulp and paper industry, the sugar industry, the chemical industry, in the food processing industry, in iron metallurgy, in sewage treatment plants and shipyards. The main features are: Replaceable wear plate with special hydrodynamic profile Heavy duty shaft, flexure on seal less than 0.05 mm
