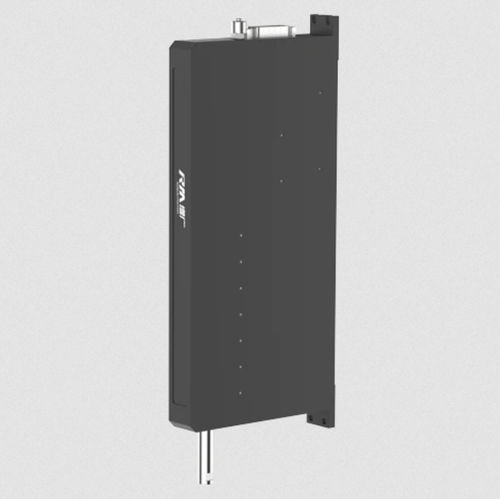

Electric actuator RM-ZRS-20-40-Tlineardirect-driveIP40
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Type
- electric
- Movement
- linear
- Technology
- direct-drive
- Protection class
- IP40
- Applications
- control, test, motor
- Other characteristics
- positioning, standard, high-force, CANopen
- Stroke
40 mm
(1.575 in)- Force
15 N
- Torque
0.023 Nm
(0.017 ft.lb)- Operating Temperature
Max.: 40 °C
(104 °F)Min.: 0 °C
(32 °F)- Repeatability
5 µm
Description
Ultra-thin body
High force control precision
Continuous force
Maximum linear stroke resolution 0.5μm
Highest repeat positioning accuracy ±5μm
Description
1. The data is sourced from the actual test results in the 25°C laboratory.
2. The drawings provided in this Catalog are for the default standard model. If you require other models with different motor directions, outlet directions, or outlet methods, please contact your local sales representative to obtain the drawings for the optional models.
