Laser marking machine MV6 VarioLase

plasticmetalfor plastics

Product Overview

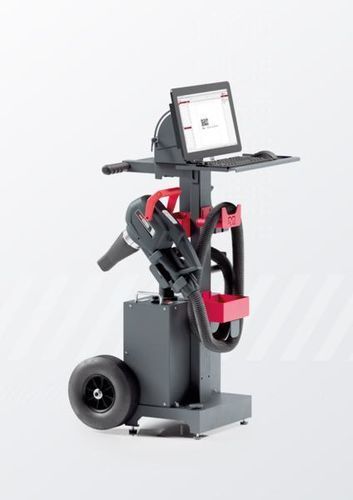

The MV6 VarioLase is a Class 1 portable fiber laser marking system engineered for on-site marking of medium-to-large parts directly on the shop floor. It provides a contact-sealed safety solution for environments where enclosed cabinets are impractical and adapts to complex geometries via quick-change contact noses.

Key Features

• Portable on-site marking unit for heavy or fixed components
• Industrial fiber laser, available in 20W and 30W versions
• Integrated Class 1 safety through contact nose
• Quick-change contact noses for different geometries and applications
• Capable of marking metals, plastics and composite materials
• High-contrast marking for QR codes, barcodes and logos
• User-oriented MV6 LaseControl software for layout and code generation
• Excellent readability and edge sharpness for traceability

Designed For

• Medium and large fabrications
• Heavy components and assemblies
• Weldments and machine frames
• Castings, forgings and steel structures
• Parts with limited accessibility or hard-to-move items
• On-site traceability tasks (pipes, valves, fittings)

How It Marks

• Laser engraving: Permanent visible indentation by selective melting and vaporization
• Annealing (color marking): Permanent color change on metals without material removal
• Foaming: Light-colored, slightly raised marks on plastics

Integrated Safety System
The unit includes an integrated safety seal in the contact nose: the laser only activates when the seal and required safety indicators are engaged. An LED status indicator on the handle provides clear device status feedback at all times.

Easy Operation with MV6 LaseControl
MV6 LaseControl enables fast creation of complete marking layouts and direct generation of common 1D/2D codes. The software supports:

• QR codes
• Data Matrix codes
• GS1 codes
• Barcodes
• Serial numbers and variable data
• Date codes
• Logos and graphics
• Alphanumeric text

Contact Noses and Accessories
Quick-change contact noses allow rapid adaptation to part geometry and application requirements. Available accessories include:

• Flat, round and cylindrical contact noses
• Custom contact noses for special parts
• Optional magnetic holding device and mobile trolley
• Optional integrated panel PC and barcode scanner
• Optional fume extraction and Class 1 tabletop enclosure

Specs (table)
Technology: Fiber laser
Power: 20W standard; 30W available
Wavelength: 1064 nm
Power supply: 100–240 V AC
Total weight: Approx. 24 kg
Handle weight: Approx. 2.5 kg
Compressed air supply: 3–7 bar
Safety: Class 1 contact-based laser safety with integrated safety seal
Markable materials: Steel, stainless steel, aluminum, titanium, coated metals, many plastics and composite materials

Selected Applications (table)
Fabrication shops
Steel structures
Heavy equipment
Aerospace components
Automotive traceability
Machine frames
Castings and forgings
Pipe, valve and fitting traceability
Barcode and QR code marking
Permanent logos and branding

Technical specifications

• Technology: Fiber laser
• Laser power options: 20W (standard), 30W (available)
• Wavelength: 1064 nm
• Power supply: 100–240 V AC
• Total weight: Approx. 24 kg
• Handle weight: Approx. 2.5 kg
• Compressed air supply: 3–7 bar
• Safety: Class 1 contact-based laser safety with integrated safety seal
• Markable materials: Steel, stainless steel, aluminum, titanium, coated metals, many plastics and composites
• Mark types: Laser engraving, annealing (color marking), foaming for plastics
• Software: MV6 LaseControl for text, graphics, barcodes, Data Matrix, QR, GS1, serials and variable data
• Accessories: Quick-change contact noses (flat, round, cylindrical), magnetic holding device, mobile trolley, integrated panel PC, barcode scanner, fume extraction, tabletop enclosure
