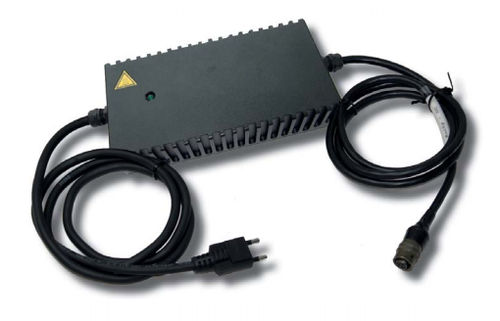

AC/DC power supply AC150

battery chargeradapter

The series AC150 power supply have a rugged, powder coated aluminum housing and is dust, vibration and water resistant. Highlights of this 150 Watt AC/DC adapter is the unique combination of military grade and protection class II (optional I), best EMI properties (optional MIL-STD 461 and Tempest Zone 1) and the wide frequency range up to 400Hz for usage in aviation applications. Developed for the usage with rodas Laptop-Server Lizard RW11 it can be used also with various different devices (non-roda products) and as battery charger with or without MIL DC-IN plug. Combined with non-flammable cables the AC/DC power supply is best suitable for aviation missions. Other plugs on request. Features Input voltage: 115Vac @60Hz/400Hz and 230Vac @50Hz/60HzOutput voltage: 19Vdc/150W (7,9A), other voltages on requestactive PFCclass I or class II equipmentoutput short-circuit protection and current limitingOperating Temperature: -20°C - + 60°CStorage temperature: -40 - +85°CWeight: approx. 0,7 kgDimension: 160 x 85 x 45 mm (without cable)Efficiency: typical >84-90% (depending on type)Transient protectionProtected against possible damage due to output over- or under-voltageIP65 according to DIN EN 60529 (dust and water)EMC-Conformity according to EN 61000-3-2:2014MIL-STD 810G, MIL-STD461F, VG 95373 (design to meet)
