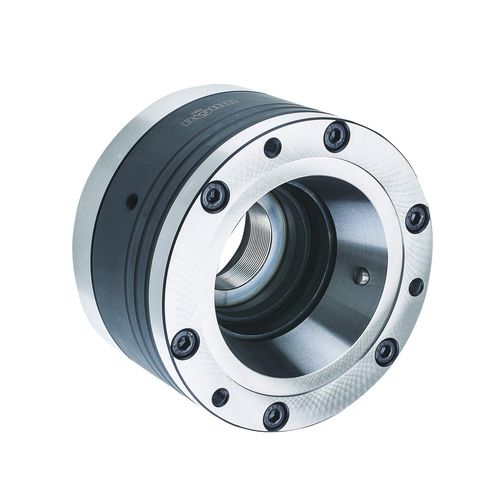

Milling collet chuck CAPTIS-AF

for machininggrindingmodular

• Force-actuated. • Optional through-hole for bar machining by removing the internal workpiece stop. • Axially fixed collect chuck, no axial tension against internal workpiece stop. Physical characteristics • Manual lubrication • Collet chucks with exchangeable and oil-resistant vulcanized rubber Application area • External clamping of round workpieces, as well as square and hexagon profiles. Turning, milling, grinding operations as well as for measuring. • Ideal for delicate workpieces, short clamping lengths and for use inopposed spindles orcounter spindles. Benefits • Maximum flexibility thanks to modular design and versatile combination and retrofitting options • Low weight and low height thanks to compact design for more work area in the machine • Short setup and non-productive times thanks to fast collect chuck change as well as great expansion of the collet chucks • No damage, impressions on workpieces due to axially fixed collect chuck • Prepared for internal workpiece stop and front stop
