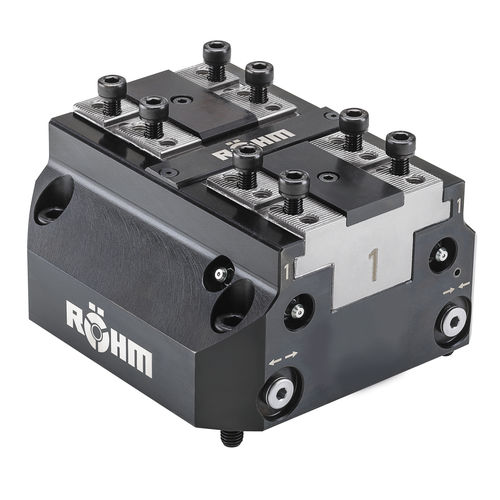

Machine tool vice KZS-H

hydraulically-operatedpneumaticcompact

power-operated centering vices KZS-H, size 64, base jawsserration 1,5 x 60° power-operated centering vices KZS-H, size 100, base jawsserration 1,5 x 60° - power-operated centering vices KZS-H, size 160, base jawsserration 1,5 x 60° Technical specification closing time - 0.4 connection for central lubrication mm - M3 depth slot mm - 2.7 diameter centre hole mm - 4 distance air connection 2 mm - 27,5 distance air connections 1 mm - 17 distance air connections mm - 17 distance bore 1 mm - 33,6 distance bore mm - 21,1 external diameter base plate mm - 84 fastening thread mm - M4-7T fixing screw mm - M6 height calmping sleeve mm - 4 height mm - 55.7 height rest block surface mm - 1.8 hole distance 1 mm - 56 hole distance 3mm - 50 hole distance 4mm - 50 hole distance 5mm - 5 hole spacing - 24 jaw travel - 2.3 length jaws mm - 23.3 length mm - 64
