process centrifuge / filter / compact / vertical
Z800

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product
process centrifuge process centrifuge - Z800
{{requestButtons}}

Characteristics

  • Applications:

    process

  • Function:

    filter

  • Configuration:

    compact

  • Orientation:

    vertical

  • Other characteristics:

    basket

  • Rotational speed:

    3,160 rpm (19,855 rad.min-1)

Description

Manual sludge removal

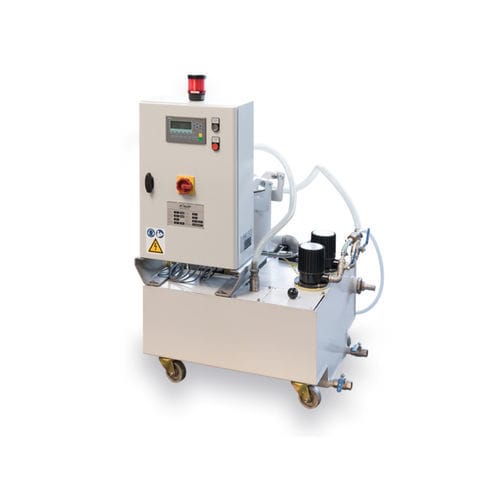

The semi-automatic basket centrifuges stand out with their excellent separation performance and their compact design allowing them to be placed in direct vicinity of the mass finishing equipment. The centrifuge itself, controls, dirty water and clean water tanks are all integrated into one unit. Of course, the heart of the system is the centrifuge designed and built by Rosier.

Impressive engineering
►Precision balanced drum made from aluminum; alternatively made from stainless steel for corrosive liquids
►Easy to maintain design of the filling system and the collecting tube
►Special guiding cone for optimum separation results
►Automatic discharge of residual liquid from the drum
►Special sludge basket for simple removal of the sludge
►Controls with modern PLC controller, fully installed and ready to run
►Feeding of the dirty process water by adjustable compressed air diaphragm pump (pulse controlled)
►Sturdy, reinforced plastic tanks made from high quality polyethylene
►Easily changeable pre-screen at the dirty water tank inlet
►Level indicator by float switch with 'full" alarm
►Angled tank bottom for easy emptying out of the tank
►Stirrer built into the dirty water tank
►Separate clean water tank; optional
►Sturdy, wear resistant diaphragm pump technology
►Locking of the centrifuge lid electrically controlled
►Automatic water and compound replenishment dosing system; optional
►Turbo-Floe® package for the addition of process water cleaner; optional
