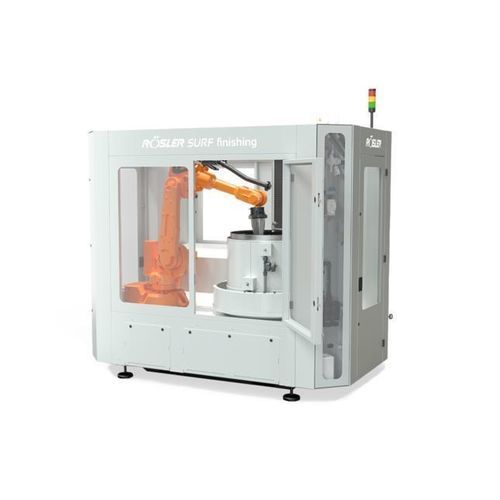

Polishing vibratory finishing machine Surf-Finisher

deburringgrindingfinishing

Product overview
Rösler Surf-Finisher systems enable targeted finishing of single, clamped components by avoiding part-to-part contact. Parts are fixed to processing spindles or robot fixtures and immersed in a tank with finishing media. Relative motion is generated by rotating the work bowl or the clamped parts, producing grinding, deburring, polishing or edge rounding depending on media and parameters. Media developed for intensive processing deliver repeatable, economical surface results.

System highlights

• Designed for delicate, complex and clamped single components
• Processing intensity significantly higher than conventional vibratory systems (page references: up to 40×; Surf-Finisher up to 50× in specific cases)
• Intelligent process control for reproducible results
• Combinable process steps (pre-grinding, fine grinding, polishing)
• Automation-ready: integration into production cells and robotic loading possible
• Available in variants for large or heavy components

Single-part processing types (overview)

• Plunge grinding (Plunge Grinding): For heavy or long single parts (indicative max length ~800 mm, max weight up to ~800 kg). Suitable for individual component processing in aerospace and automotive; working spindle can perform multiple movements to optimize results.
• Drag Finishers: Compact, powerful units for line integration. Typically 2–6 working spindles hold and immerse parts. Suitable for wet and dry processing; available with manual clamping or fully automated robotic handling.
• Surf-Finisher: The most intensive mass-finishing type for high-precision clamped shapes. Offers a process-stable alternative to manual brushing, belt sanding or polishing, enabling very high processing intensity.
• Multi-Surf-Finisher: Simultaneous processing of several parts; both spindles and work bowl rotate for increased intensity. Loading can be manual or automated by industrial robot.

Downloads & supporting documents (mentioned on page)

• Fact sheets and brochures available for Plunge Grinding, Drag-Finishers, Surf-Finisher and single-part finishing (refer to product page for specific datasheets)

Technical specifications / characteristics

• Product name: Surf-Finisher (Rösler)
• Intended use: single-part finishing for delicate, complex components
• Industries: aerospace, automotive, medical technology, tooling
• Operations: grinding, deburring, polishing, edge rounding
• Clamping: parts fixed to processing spindles or robot fixtures
• Motion principle: rotating work bowl or rotating parts to generate relative movement with finishing media
• Processing intensity: page references indicate up to 40× higher vs. vibratory systems; Surf-Finisher up to 50× in specific cases
• Process control: intelligent control for reproducibility
• Process steps: combinable (pre-grinding, fine grinding, polishing)
• Automation: integration into production cells and robotic loading supported
• Variants: Plunge Grinding (≈800 mm / ≈800 kg), Drag Finishers (2–6 spindles; wet/dry), Multi-Surf-Finisher (multi-part simultaneous processing)
