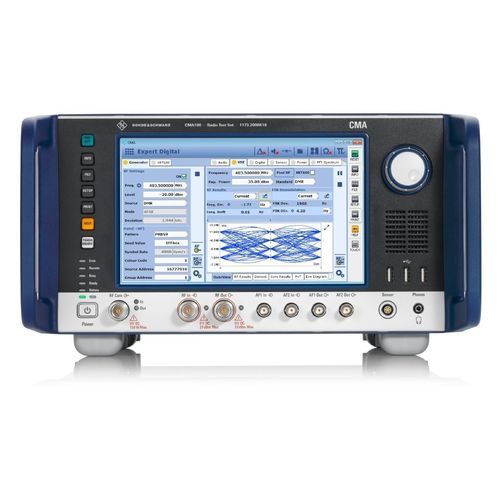

Radio tester R&S®CMA180

With its frequency range from 100 kHz to 3 GHz, the R&S®CMA180 is ideal for testing all common analog and digital radio systems. Input levels up to 150 W are no problem for the R&S®CMA180. The flexible internal switching capabilities for the audio and RF paths make the R&S®CMA180 suitable for a wide range of test requirements. Users can configure the internal generators, external audio sources, filters and measurements according to the given application. In the predefined test scenarios for receiver, transmitter and duplex tests, the RF and audio paths are preconfigured. This saves time and eliminates configuration errors for standard test cases. Key facts Frequency range: 0.1 MHz to 3 GHz Digital standards: DMR, P25, NXDN, TETRA, POCSAG, Zigbee Analog testing: AM, FM, PM, SSB, CW Avionics: ILS, VOR, MB generator and VOIP ED-137B/C support I/Q recording and playback Versatile RF measurements Sweeping spectrum analyzer and tracking generator The R&S®CMA180 features a built-in sweeping spectrum analyzer. Extensive configuration options make this analyzer a universal tool for testing all types of DUTs. The spectrum analyzer has two operating modes: full span and user-defined spans. The zero span mode enables analysis in the time domain. In combination with the triggers, transients can be displayed. The built-in tracking generator makes it easy to determine the frequency response of RF components.
