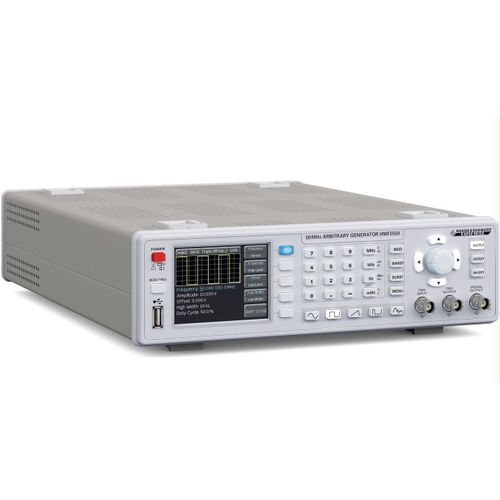

Function generator R&S®HMF2525/HMF2550

arbitrary waveformpulsesquare signal

Powerful pulse generator Provides pulses with a recurrence rate of up to 12.5 MHz/25 MHz; the pulse width can be set from 15 ns to 999 s with a resolution of 5 ns. Rise/fall time can be selected from 8 ns to 500 ns – a very useful feature when characterizing input hysteresis of semiconductor devices Easily create arbitrary waveforms Arbitrary waveforms can be developed with PC software. Stored waveforms can be loaded via front USB port or imported via the complimentary HMExplorer software (available for download) Key facts Frequency range: 10 μHz to 25/50 MHz Triangle waveforms up to 10 MHz Output voltage: 5 mV to 10 V (Vpp) (into 50 Ω) Waveforms: sine, square, triangle/ramp, pulse, arbitrary Arbitrary waveform generator: 250 Msample/s, 14 bit, 256 kpoint
