RF connector

SMAfrequencymillimeter wave

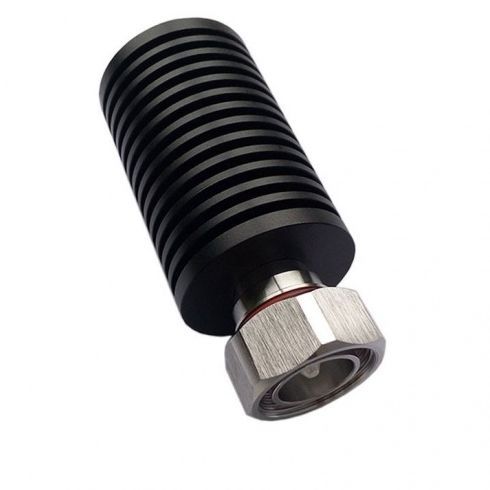

• Wide frequency Band; • Supports -105/-120/-150dBc PIM Rating; • Low VSWR and excellent impedance matching; • Wide frequency Band; • High Reliability, IP65 & IP67 waterproof; • Economic price. The 50W 7-16 DIN dummy load (also known as 50W 7-16 DIN termination or 50W 7-16 DIN RF load) has a 7-16 DIN connector that is male. This 50W 7-16 DIN male load / termination is rated for a maximum frequency of 3GHz. ROHO's 7-16 DIN male termination load is a rf load termination with a 50ohm impedance;This 7-16 DIN coaxial termination / load has an average maximum VSWR of 1.2:1. and 50W 7-16 DIN male load termination is one of RF, microwave and millimeter wave components, ROHO also could do SMA,DIN,4.3-10,N or other Connector for this product,All specification we can be customized.
