RF connector DINSMAcoaxial
Add to favorites
Compare this product
Characteristics
- Type
- RF
- Format
- DIN, coaxial, SMA
- Connection type
- male
- Material
- PTFE
- Product applications
- terminal, millimeter wave
- Protection class
- IP67, IP65
- Other characteristics
- microwave
- Impedance
50 Ohm
Description
• Wide frequency Band;
• Supports -105/-120/-150dBc PIM Rating;
• Low VSWR and excellent impedance matching;
• Wide frequency Band;
• High Reliability, IP65 & IP67 waterproof;
• Economic price.

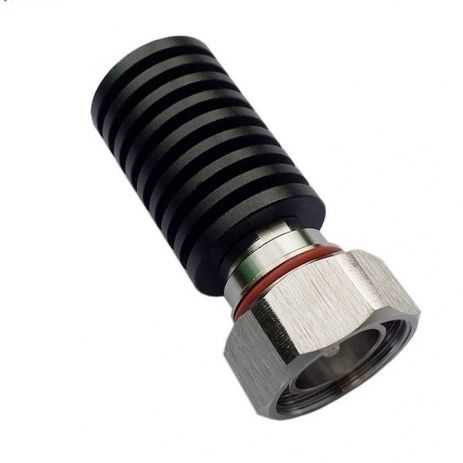

The 25W 7-16 DIN dummy load (also known as 25W 7-16 DIN termination or 25W 7-16 DIN RF load) has a 7-16 DIN connector that is male. This 25W 7-16 DIN male load / termination is rated for a maximum frequency of 3GHz. ROHO's 7-16 DIN male termination load is a rf load termination with a 50ohm impedance;This 7-16 DIN coaxial termination / load has an average maximum VSWR of 1.2:1. and 25W 7-16 DIN male load termination is one of RF, microwave and millimeter wave components, ROHO also could do SMA,DIN,4.3-10,N or other Connector for this product,All specification we can be customized.
