Battery cell dual layer sensor WF14

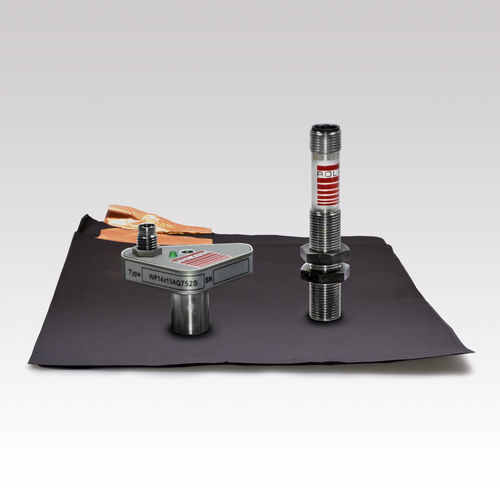

Dual layer detection sensors for Li-Ion-Electrodes and thin non magnetic foils on the basis of an eddy current sensor. This sensor performs a dual layer detection and is characterized by a very fast response time (28 ms). We recommend to combine the sensors with the Universal Detector System XA100 which comes with a LCD-display, a keyboard and binary outputs. This makes integration into your PLC very easy. • Product of conductivity and thickness: 300-3000 / Ohm • For mounting in "Schmalz Battery Gripper SBG" (WF14x15AQ153S) • Analog output for connection to PLC or XA100 • Technology: - Eddy Current • Sensor variants: - For Li-Ion electrodes or solar cells, mono / multi crystalline, 100 - 300 µm • Sensor principle: - Single side, contacting • Air gap: - 1 mm • Reaction time: - 28 ms • Output: - analog 0 - 10 V / 4 - 20 mA
