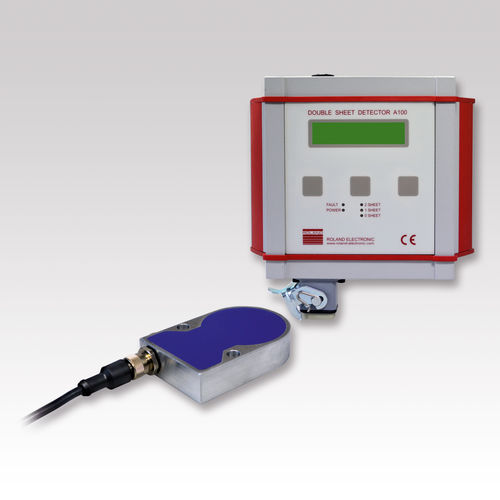

Double metal sheet detector Eagle Eye AA + XA100

thicknessinductiveanalog

The XA100-S together with the Eagle Eye sensors AA offers a cost-effective detection of layers, joints and edges in semi-finished metal products. The three sensor models cover a measuring range from 0.2 to 8.0 mm (.007 in - .314 in ). • Function principle: - Inductive sensor principle • Material: - Ferromagnetic material (FE) • Sheet Thickness: - 0 .2 - 8.0 mm (0.007 in - 0.314 in) , depending on sensor type • Measuring method: - Single probe Double Sheet Detection, detection of layers, joints and edges in semi-finished metal products • Analog output: - 4 - 20 mA or 2 - 10 V • Switching thresholds: - 80 % and 120 % of nominal value (changeable) • Programs: - 16 measurement programs • Operation: - Easy setup by key operation or via control input • Special feature: - LCD display for visualization of nominal / current values, operational / error messages, key allocation
