Inkjet large format printer DIMENSE DA-640

4-colorroll-to-roll

Overview

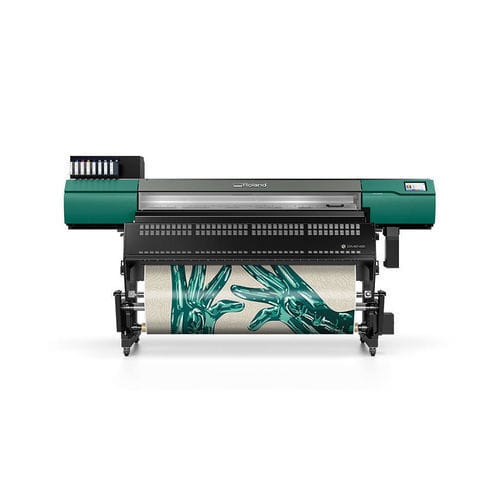

Roland DG Corporation has announced the release of the DIMENSE DA-640, a wide-format dimensional surface printer designed to produce full-color prints with integrated embossing effects more easily and cost-effectively than traditional methods. The system combines new printheads, specialized heat-reactive media that raises up to 2 mm in thickness, and a structural ink to precisely control embossed areas, enabling on-demand production of textured, high-value output for a wide range of applications.

Key features and capabilities

• Wide-format dimensional surface printer (DIMENSE DA-640) with newly developed printheads optimized for dimensional output.
• Specialized DIMENSE media that expands/raises up to 2 mm when exposed to heat in the printer to create embossing/texture.
• Structural ink that controls where embossing occurs on the print, enabling precise embossed effects.
• Full-color dimensional printing from single one-off prints to larger runs, supporting on-demand production workflows.
• Ability to print emboss-only effects which can then be painted over to produce unique, tactile finishes.
• Wide range of specialized media finishes available: matte, suede, silver, gold, pearl, and chameleon.
• Media lineup includes options compliant with the U.S. Type II standard for commercial wallpaper and offers high scratch resistance.
• Available media formats include tension fabric and roll-up banners for indoor signs and displays, enabling selection of the most appropriate substrate for different applications.
• Eco-friendly materials and consumables: DIMENSE media is PVC-free; CMYK inks are water-based resin; structural ink is butylene glycol-free and conforms to safety standards.
• Structural and safety certifications referenced: AgBB, A+, UL, and GREENGUARD Gold 'Unrestricted' wall coverings.
• Included software and workflow tools: Roland DG Connect Designer DIMENSE Module (for creating embossing layers and visualizing output) and VersaWorks 7 RIP software for detailed print settings; compatible with Windows and macOS.
• Target users and applications: print service providers, architects, designers and businesses producing textured interior surfaces and decorative elements for commercial and hospitality environments, residential spaces, entertainment, retail design, signage and displays.

Benefits

• Expands creative possibilities beyond pre-made artwork and stocked wallpapers by enabling bespoke, textured designs produced on-demand.
• Reduces inventory needs and cost compared with alternative dimensional finishing methods.
• Enables high-impact, tactile finishes that can be further customized with paints and other post-print treatments.
• Designed for ease-of-use to allow fast adoption: included software tools and RIP enable rapid setup and production.

Technical specifications

• Model: DIMENSE DA-640
• Product type: Wide-format dimensional surface printer
• Embossing / raised texture: Specialized DIMENSE media raises up to 2 mm when heat-activated in the printer
• Printheads: Newly developed printheads (proprietary to DIMENSE DA-640)
• Inks: CMYK water-based resin inks; structural ink (butylene glycol-free)
• Media: Matte, suede, silver, gold, pearl, chameleon finishes; tension fabric; roll-up banners; DIMENSE media is PVC-free
• Certifications / standards: Media and inks conform to AgBB, A+, UL, GREENGUARD Gold 'Unrestricted' wall coverings; lineup includes U.S. Type II compliant wallpaper media
• Software: Roland DG Connect Designer DIMENSE Module (embossing layer creation and visualizer); VersaWorks 7 RIP included
• OS compatibility: Windows and macOS
• Production: Supports one-off to volume on-demand textured printing
• Post-processing: Emboss-only prints can be painted/finishing-applied for unique effects
• Release date (announced): June 26, 2025
• Manufacturer: Roland DG Corporation
