IoT Edge gateway EDGE Pro

communicationindustrialTCP

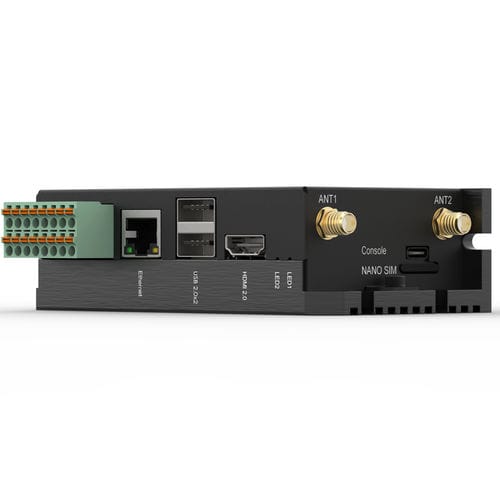

EDGE Pro IoT Gateway Industrial IoT Controller EDGE Pro IoT Gateway series consists of all-in-one industrial edge computing controllers based on Raspberry Pi, designed to serve multiple industrial purposes. These controllers are built to withstand harsh industrial environments and provide high scalability, with abundant I/O resources. Supported by the extensive Raspberry Pi industrial software ecosystem, they are an excellent option for smart automation and Industrial Internet of Things (IIoT) solutions. Rugged Industrial-Grade Hardware Design EDGE Pro Industrial IoT Controller has a robust overall structure that requires minimal maintenance, as it incorporates thermal management with a full aluminum heatsink enclosure. Its lightweight design and compatibility with both 35mm DIN and wall mounting make it ideal for use in tight spaces and extreme conditions, including in-vehicle applications. Rich IO Industrial Interfaces while Supporting Extensive Bus Protocols and Standards 2x isolated DI; 2x isolated DO 1x isolated RS485; 1x RS232 2x USB2.0 A1 M.2 slot support 2242 NVME SSD 1x HDMI 2.0 up to 4k@60fps Cellular: Mini-PCIe support 4G LTE(Quectel EC20/EC25 tested) WiFi: 2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac equipped LoRa: Mini-PCIe support LoRaWAN CPU Core: 4-core Raspberry Pi CM4 Memory: 1GB, 2GB, 4GB Storage: 8GB, 16GB, 32GB
