lithium-ion battery charger / lead-acid / portable / plug-in lithium-ion battery charger / lead-acid / portable / plug-in - R1000
{{requestButtons}}

Characteristics

  • Battery type:

    lithium-ion, lead-acid

  • Configuration:

    portable, plug-in, open-frame

  • Other characteristics:

    automatic, single-phase, high-speed, adjustable, waterproof, high-current, CE

  • Applications:

    for electric vehicles, for forklift trucks

Description

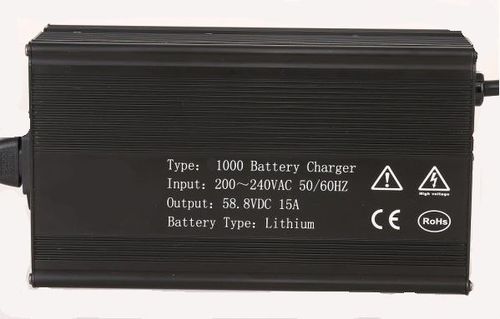

R1000 is 900Watts Li-Ion Battery charger.
Feature:
1、Built-in PFC,AC Input Voltage:90VAC~132VAC or 180~264VAC for option;
2、High efficiency,Maximum efficiency can be 93% above;
3、Protections:Short circuit/Overload/Over Voltage/Under Voltage/Over Current/Over
Temperature/Reverse Polarity/Discharging
4、Case: Aluminium Alloy;
5、Cooling: Fan.
6、All materials are environmentally friendly, fire-resistant,lead free;
7、ALL chargers are full load burn-in for 4 hours abov with data record;
8、Safety withstand voltage testing: Plastic case charger: input to output 3750VAC(<5mA); Metal shell:
input to GND:1800VAC(<5mA);Charger ARC level:Level 5;Transformer primary to
secondary:3750VAC(5mA);Transformer ARC level:level 7
9、Low surge current,LLC resonance soft-switching technology,synchronous rectification;no
interference,low output voltage ripple;
10、No spark DC plug design when plug in or pull out from the battery;
11、Compatible for with or without voltage battery charging input port;
12、No spark short circuit protection.
