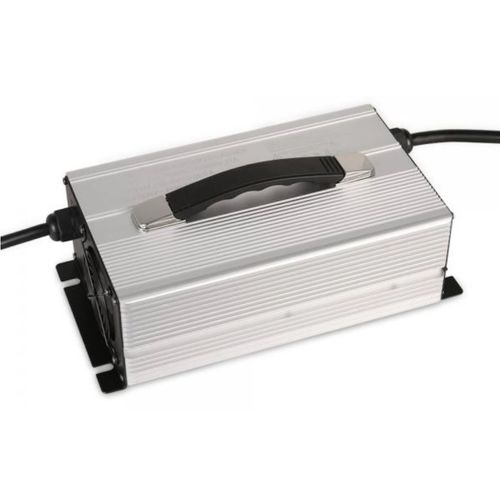

Electric vehicle battery charger RS2500

railwayportableplug-in

RS2500 is 2000Watts Li-Ion Battery charger. Feature： 1、Built-in PFC，Universal AC Input Voltage:90VAC~264VAC for option; 2、High efficiency，Maximum efficiency can be 93% above； 3、Protections：Short circuit/Overload/Over Voltage/Under Voltage/Over Current/Over Temperature/Reverse Polarity/Discharging 4、Case: Aluminium Alloy； 5、Cooling: Fan. 6、All materials are environmentally friendly, fire-resistant,lead free； 7、ALL chargers are full load burn-in for 4 hours abov with data record； 8、Safety withstand voltage testing: Plastic case charger: input to output 3750VAC(<5mA); Metal shell: input to GND:1800VAC(<5mA);Charger ARC level：Level 5；Transformer primary to secondary:3750VAC(5mA)；Transformer ARC level：level 7 9、Low surge current，LLC resonance soft-switching technology，synchronous rectification；no interference，low output voltage ripple； 10、No spark DC plug design when plug in or pull out from the battery； 11、Compatible for with or without voltage battery charging input port； 12、No spark short circuit protection. 13. With MCU intelligent control，LED screen displays information like voltage, current. Supports RS485 and CAN2.0B，Isolation and Non-Isolation interface are compatible； 14. With auxiliary power，Voltage：3.3V~48V
