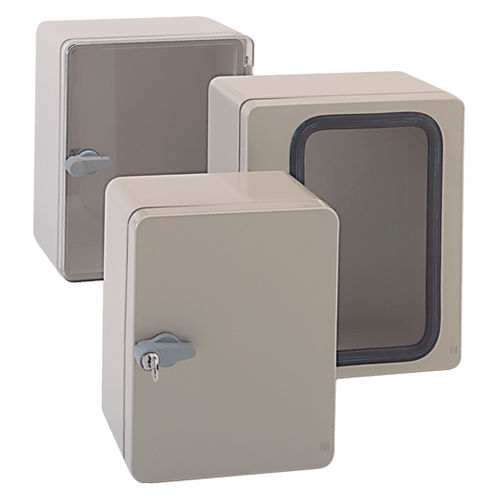

Control electric cabinet ABS-K , ABS-T series

wall-mount

> Enclosure system with hinged lid for MCR technology > Standard version or with window panel or transparent door (ABS) The ABS mini control cabinets are enclosure systems with a hinged lid which have been specially developed for C&I equipment. There are two different types. The standard version incorporates an opaque lid/door while the version with a window panel has a transparent lid/door. The plastic mini control cabinets have a degree of protection of IP 65 in acc. with EN 60529 and an impact-strength of 7 Joule. Their large service-temperature range of -40°C to +60°C and their degree of protection indicate that these ABS mini control cabinets can be used both indoors and outdoors. It is possible at attach a door lock. This can simply be ordered as an accessory with the enclosure. Colour:ABS: RAL 7035, light grey, special colour on request Ingress protection:IP 65 to EN 60529 Impact resistance:7 Joule in reference to EN 60079-0 Disruptive strength:ABS: 24 KV/mm, IEC 60243-1 Insulation:fully insulated VDE 0100 Flammability:ABS: UL 94 HB Surface resistance:ABS: 4x1014 Ohm, IEC 60093 Toxicity:halogen free opening angle:135° Temperature range:-40°C to +60°C
