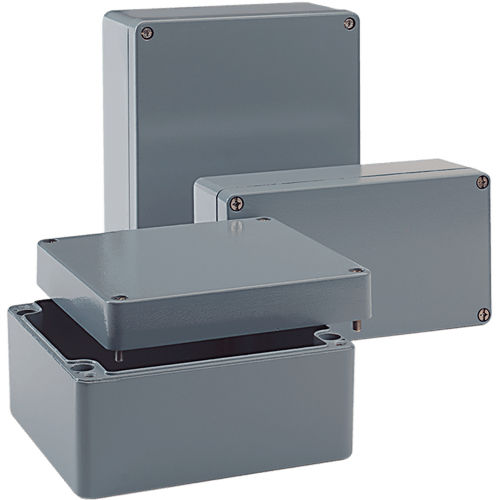

Aluminum enclosure ALS seriesDIN railpanel-mountrectangular

aluminum enclosure
aluminum enclosure
aluminum enclosure
aluminum enclosure
aluminum enclosure
aluminum enclosure
aluminum enclosure
aluminum enclosure
aluminum enclosure
aluminum enclosure
aluminum enclosure
aluminum enclosure
Add to favorites
Compare this product
indicative price

Characteristics

Construction
DIN rail, panel-mount
Configuration
rectangular
Material
aluminum
Other characteristics
screw cover, die-cast
Application
electronic equipment, industrial, for general purposes, switch, for printed circuit boards, terminal, push-button, switching
Protection level
standard, robust, IP66
Width

Max.: 600 mm (24 in)

Min.: 50 mm (2 in)

Height

Max.: 600 mm (24 in)

Min.: 45 mm (2 in)

Depth

Max.: 202 mm (8 in)

Min.: 30 mm (1 in)

Description

MODEL / PRODUCT FEATURE > Robust aluminium enclosure for mechanical engineering and automation technology > Fixing options for DIN rails and mounting plates > Usable in wide temperature area These robust aluminium die-cast enclosures provide, thanks to their comprehensive range of more than 40 sizes, from 45 x50 x 30 mm to 600 x 600 x 200 mm, a standardised enclosure system for industrial applications. They are eminently suitable for the installation of electrical and electromechanical components, including terminals, buttons, switching elements and electronic modules containing PCBs. A standardised, but also individualised range of accessories enables us to meet customers' individual requirements and supply specified products. The technical properties of these enclosures make them all-rounders, assuring numerous and diverse potential uses in classical mechanical engineering and in virtually all fields of industry. Technical Data Material:DIN EN 1706 EN AC-AlSi 12 (Fe) Certificates:E66473 Colour:Powder coating, RAL 7001, silver grey, special colour on request Ingress protection:IP 66 to EN 60529 higher protection on request Impact resistance:7 Joule in reference to EN 60079-0 Temperature range:PU (polyurethane) seal (std.): -40°C to +90°C CR (chloroprene) seal: -40°C to +100°C VMQ (silicone) seal (optional): -60°C to +130°C Other versions on requestEMC, SBG, SBGL, SWB, Silicone lid seal
