Single-inlet fan 2TRE
centrifugal230VAC115VAC

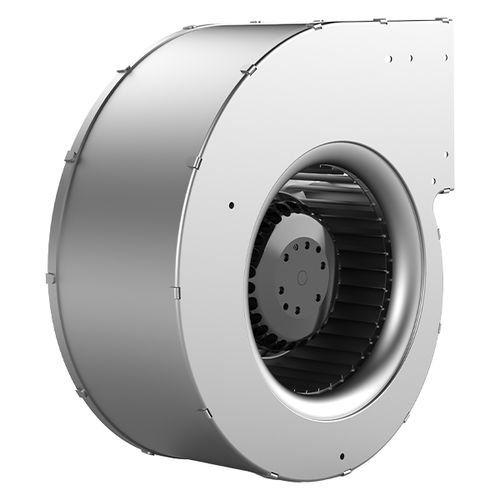

Single-inlet fan - 2TRE - ROSENBERG VENDÔME - centrifugal / 230VAC / 115VAC
Single-inlet fan - 2TRE - ROSENBERG VENDÔME - centrifugal / 230VAC / 115VAC
Single-inlet fan - 2TRE - ROSENBERG VENDÔME - centrifugal / 230VAC / 115VAC - image - 2
Single-inlet fan - 2TRE - ROSENBERG VENDÔME - centrifugal / 230VAC / 115VAC - image - 3
Single-inlet fan - 2TRE - ROSENBERG VENDÔME - centrifugal / 230VAC / 115VAC - image - 4
Single-inlet fan - 2TRE - ROSENBERG VENDÔME - centrifugal / 230VAC / 115VAC - image - 5
Add to favorites
Compare this product

Characteristics

Configuration
centrifugal
Supply voltage
230VAC, 115VAC, AC
Material
plastic, galvanised steel
Applications
motor
Other characteristics
with external rotor, single-inlet, IP54
Air flow

Min.: 200 m³/h
(7,062.933 ft³/h)

Max.: 750 m³/h
(26,486 ft³/h)

Diameter

Min.: 108 mm
(4.252 in)

Max.: 200 mm
(7.874 in)

Description

ECOFIT Single inlet centrifugal fans AC single phase motor Forward impeller galvanized steel or plastic, Impeller diameter of 108 up to 200mm, AC single phase capacitor external rotor motor 230V50/60Hz and 120V50/60Hz, Plastic, black painted or galvanized steel scroll, Maximum airflow of 200 up to 750m3/h, maximum pressure of 160 up to 900Pa, CE, UL mark, Options: special voltage, three phase motor.
