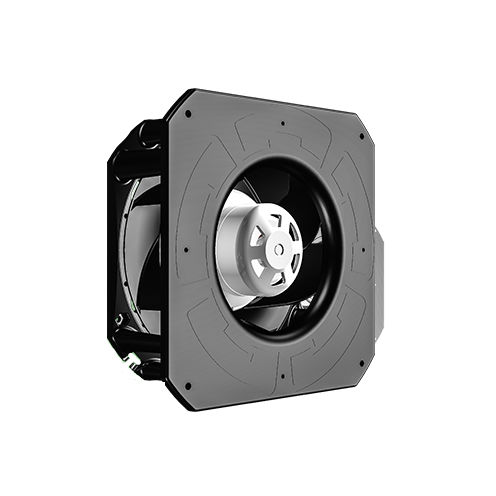

Centrifugal fan .V32-A6ventilationEC motorbackward curved
Add to favorites
Compare this product
Characteristics
- Configuration
- centrifugal
- Function
- ventilation
- Drive mechanism
- EC motor
- Other characteristics
- backward curved
- Air flow
Min.: 175 m³/h
(6,180.067 ft³/h)Max.: 820 m³/h
(28,958.027 ft³/h)- Rotational speed
Min.: 1,698 rpm
(10,669 rad.min-1)Max.: 3,560 rpm
(22,368 rad.min-1)
Description
NEW ECOFIT MODULE: EASY TO INSTALL FOR A HIGH EFFICIENCY VENTILATION
Thanks to our EC F5 motor, get better performances in the same space as an AC, and higher speeds than an AC motor
Drive of the speeds of the EC motor for an optimized power consumption and low running costs
The special design of the module avoids losses of airflow
Cable outlet positioned according to the needs of the application
Standard fixing points
Lighter than the metal modules
Can be used in cold and humid environments
From -20 up to 60°C
Flame retardant
Motor protection in case of locked rotor
Finger guard to protect the fan and avoid any contact with foreign objects
