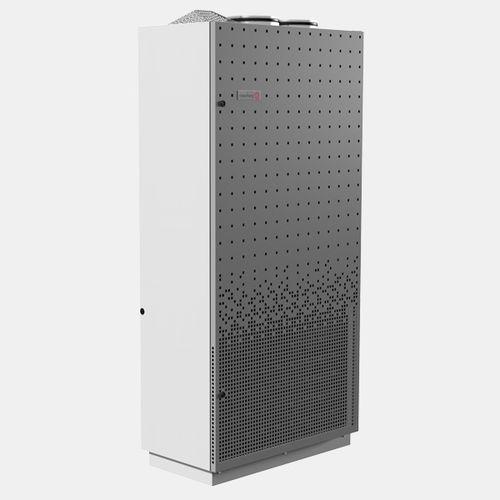

Energy heat recovery system SupraBox DELUXE

The decentralised energy recovery unit series SupraBox DELUXE is ideal for use in classrooms and seminar rooms as well as offices and common rooms. Through the integrated source air outlet and the direct removal of the exhaust air via the unit, no additional ventilation pipes are needed in the direction of the room. A CO2 need-based control ensures maximum comfort and creates optimal indoor air quality. Two units are available with different ventilation system capacities depending on room occupancy and number of persons. Both units develop a maximum sound pressure level of 35 dB(A) (at 1m distance), thus ensuring trouble-free use of the space. SupraBox DELUXE 500 V Nominal air flow rate: 500 m³/h External pressure increase: 50 Pa Sound pressure level: 34 dB(A) at 1m distance Installation: intrinsically safe, upright in the room (vertical connections DN250) Electrical connection: 230 V Insulation: 40 mm Filter class: supply air: F7 / exhaust air: M5 (formerly F5) Heat recovery rate: with condensate η > 90% (with no condensate η = 82-85%) Dimensions [mm]: [WxDxH] 997 x 522 x 2,078 (without connections) Total weight: approx. 206 kg SupraBox DELUXE 750 H Nominal air flow rate: 750 m³/h External pressure increase: 50 Pa Sound pressure level: 35 dB(A) at 1m distance Installation: intrinsically safe, upright in the room (horizontal connections DN315) Elektrischer Anschluss: 230 V Insulation: 60 mm (unit rear 40 mm) Filter class: supply air: F7 / exhaust air: M5 (formerly F5) Heat recovery rate: with condensate η > 90% (with no condensate η = 82-85%) Dimensions [mm]: [WxDxH] 1,950 x 570 x 1,900 (without connections)
