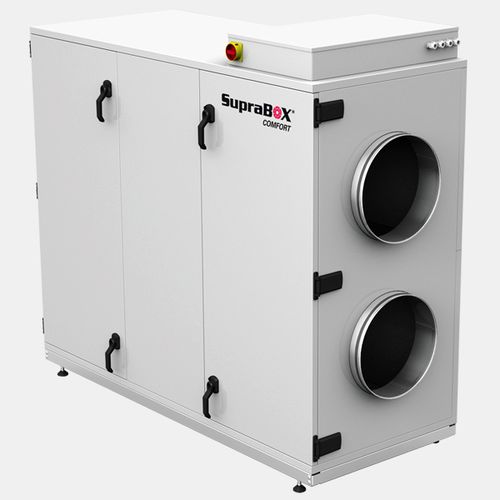

Energy recovery system SupraBox COMFORT (H)

The Rosenberg SupraBox COMFORT energy recovery units are space-saving and distinguished primarily by their high energy efficiency. They provide an energy-saving ventilation system for real estate such as restaurants, retail shops, hotels, office buildings and many more. As a horizontal (H) connection option, the SupraBox COMFORT units are available in 6 sizes with different nominal air flow rates. These range from 800 - 5,000 m³/h. Depending on local conditions, you can choose between a left and a right unit design for each size. There are also weatherproof designs available. Right design: Supply air connection RIGHT (facing the operator side) Left design: Supply air connection LEFT (facing the operator side) Hygiene requirements The SupraBox COMFORT energy recovery unit corresponds to the current state of standardisation in accordance with VDI 6022. The units are smooth (coil coated inside and out - RAL 7035) and easy to clean. Casing The units have a sturdy frameless casing. The casing has a double-skinned design. The inner and outer panels are made of 1 mm galvanised steel sheet (coil coated). The insulation thickness is 40 mm. Heat recovery High efficiency counterflow heat exchangers with over 90% efficiency are utilised for heat recovery. Complete separation of the supply air and return air without odour transfer is ensured. Filter Fine dust filters of the F7 filter class for the supply air and the M5 class (formerly F5) for the return air are utilised as a standard feature. Quick-release clips allow for fast and easy filter changes.
