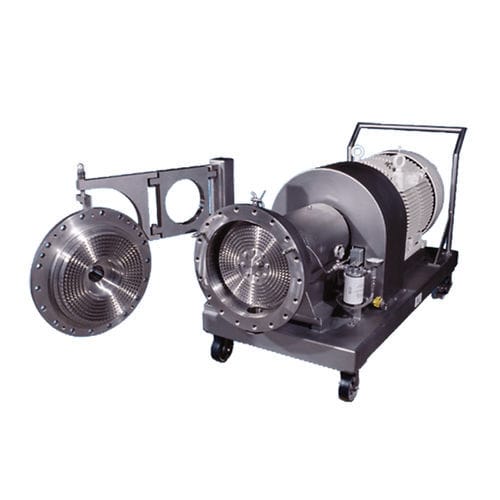

Our Ultra High Shear Models include the Quad,X Series or MegaShear Designs. The units include four stage or greater rotors that turn at speeds to 15,000 feet per minute within a stationary stator. As the rotating blades pass the stator, they mechanically shear the contents.
This series is a good choice for process lines that require frequent changeover from one product to another. A simple valve can divert finished product downstream or switch instantly from one vessel to another. The Inline models are supplied in many sizes and materials of construction from 10 through 250 horsepower
• 40 through 300 HP.
• 230/460 volt, 60 Hz., three phase, explosion proof motors (see options for starters and controls).
• Tip speeds of 11,300 feet per minute.
• Heavy-duty shafts and bearings as well as extremely tight machining tolerances.
• X-Series or Quad Slot rotor/stator sets.
• Equipped with a cartridge type double mechanical seal and barrier system.
• Type 316 stainless steel wetted parts.
• NPT threaded connections on units through 10 HP. Larger units use standard ANSI flanges.
• All non-stainless steel external surfaces coated with a white two part epoxy paint.
