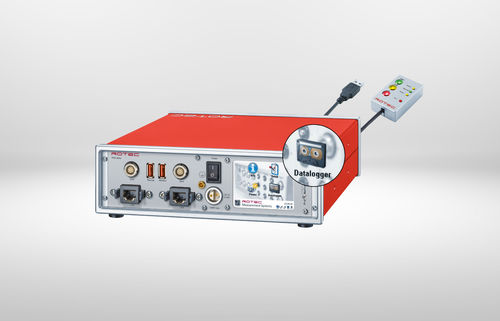

USB data-logger

with touch screen

With the additional data logger module, you can convert your RASdelta 08 or 16 front-end to a data logger for mobile use such as in motor vehicles, on motorcycles, in racings or for applications at sea. The RASdelta runs in data logger mode without a measuring laptop, whereby all functions for operating the system can be executed directly at the RASdelta front end. Touch operations on the display enables measurements to be configured and carried out. All configuration and measurement data are stored on a micro SD card with USB adapter and can later be transferred to a PC for evaluation. Data storage • - USB2 memory stick • - Hard drives usable file format • - FAT • - FAT32 max. size of the file system 256 GB Use of the following measurement boards possible • - RASdelta trigger board • - RASdelta speed board • - RASdelta analog board 50 KHz • - RASdelta analog board 3.2 MHz
