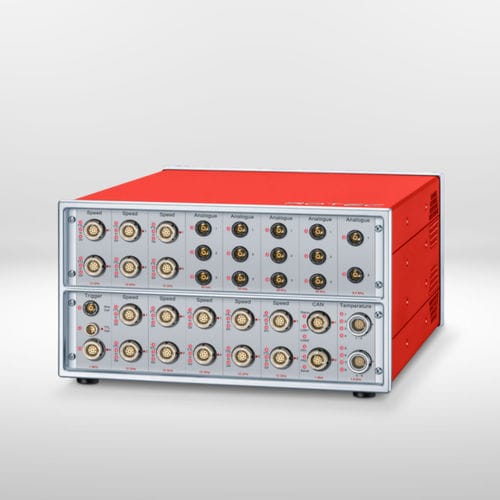

Voltage measuring module RASdelta 16
speedbenchtopfront end

voltage measuring module
voltage measuring module
Add to favorites
Compare this product


Characteristics

Measured value
voltage, speed
Configuration
benchtop
Other characteristics
front end, multi-channel

Description

Get to know our big version of the RASdelta mainframe! The RASdelta 16 front end has 16 slots for trigger and measurement boards. You can equip the front end with one master board and up to 15 measurement boards. Measurement board slot 16 Data transfer • - Clock synchronous operation of several devices through I/O synchronization • - 2 high-speed Gigabit Ethernet ports for data-uplink • - Overall maximum net data transfer rate of about 80 Mbyte/s • - Up to 100 Mbit/s data rate per measurement board • - Up to 1000 Mbit/s overall data rate through Ethernet link • - Long-term stability through 1 MHz high precision clock Power supply • - DC-power supply 120 watt • - Input voltage range 6 to 30 Size and weight • - Height: 128 mm (base dimension 263 mm x 227 mm) • - Weight: 4,55 kg incl. 16 measurement boards (5,75 kg with AC/DC power supply) Other • - Embedded controllers and display units • - 2.8 inch integrated touch panel display for setup and status information • - USB interfaces for storage and remote control • - Temperature regulation by controlled fan
