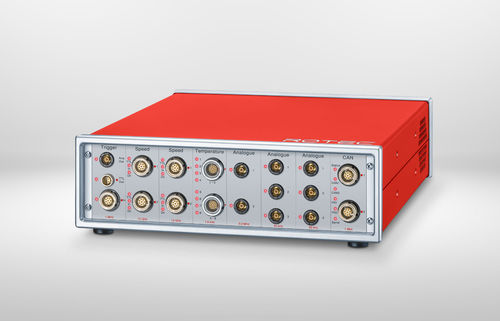

Voltage measuring module RASdelta 8

temperaturespeedbenchtop

Get to know our small version of the RASdelta mainframe! The RASdelta 8 is the smallest measuring system of the RASdelta series. You can equip the front end with one master board and up to seven measurement boards. Measurement board slot 8 Data transfer • - Clock synchronous operation of several devices through I/O synchronization • - 2 high-speed Gigabit Ethernet ports for data-uplink • - Overall maximum net data transfer rate of about 80 Mbyte/s • - Up to 100 Mbit/s data rate per measurement board • - Up to 1000 Mbit/s overall data rate through Ethernet link • - Long-term stability through 1 MHz high precision clock Power supply • - DC-power supply 60 watt • - Input voltage range 6 to 30 Size and weight • - Height: 69 mm (base dimension 263 mm x 227 mm) • - Weight: 2,75 kg incl. 8 measurement boards (3,30 kg with AC/DC power supply) Other • - Embedded controllers and display units • - 2.8 inch integrated touch panel display for setup and status information • - USB interfaces for storage and remote control • - Temperature regulation by controlled fan
