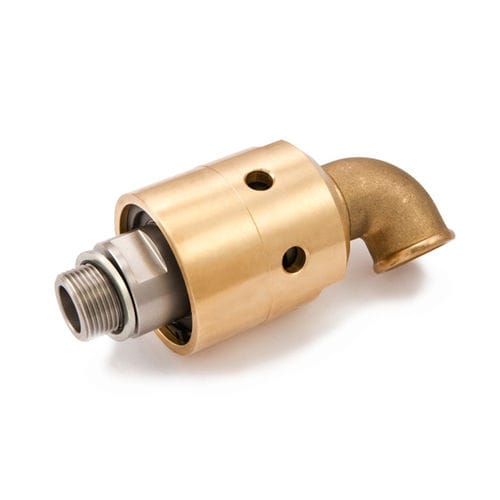

Water rotary union H series2-passagestainless steelwith seal
Add to favorites
Compare this product
Characteristics
- Medium
- for water
- Number of passages
- 2-passage
- Material
- stainless steel
- Other characteristics
- with seal
- Rotational speed
750 rpm, 2,500 rpm
(4,712.39 rad.min-1, 15,707.96 rad.min-1)- Pressure
40 bar, 50 bar
(580 psi, 725 psi)- Nominal size
Min.: 0.25 in
Max.: 2 in
Description
These unions are available with two different balanced and microlapped sealing assemblies:
N Seal (Standard Sealing) with carbon graphite to carbide seals for application with filtered water.
D Seal (Heavy duty sealing) with carbide to carbide seals for poor filtrated.
Fluid pressure over 8 bar is allowed only when the fluid is cool water at max temperature 125°F (50°C). Do not use the unions at max application limits without consulting ROTOFLUX.
