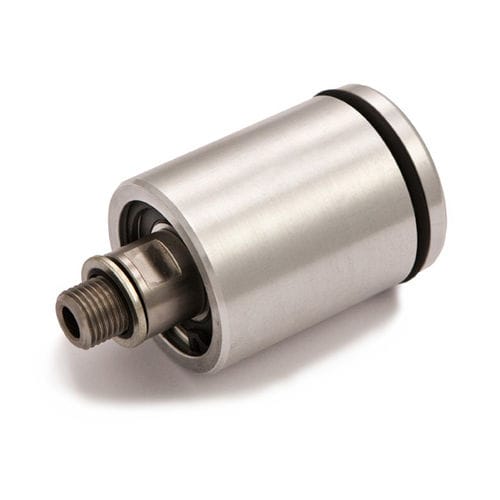

Air rotary union V seriesfor oilfor vacuumaluminium
Add to favorites
Compare this product
Characteristics
- Medium
- for air, for oil, for vacuum
- Material
- aluminium, brass, stainless steel, bronze
- Other characteristics
- with seal, shaft-mounted
- Rotational speed
3,500 rpm
(21,991.15 rad.min-1)- Pressure
10 bar, 50 bar, 7,000 bar
(1 psi, 145 psi, 725 psi)- Nominal size
0.25 in, 0.375 in, 0.5 in
Description
The unions of the model V are designed for inside the shaft mounting with short overhang. They are available with two different micro-lapped sealing assemblies:
N model (Standard) with carbon graphite to carbide seals, for air, vacuum and hydraulic oil at 20 bar max pressure.
D model (Heavy duty) with carbide to carbide seals for hydraulic oil applications.
The model V06, very short, is provided with a center spring and with N seals in stainless steel to carbon graphite or with D seals in stainless steel against bronze. Do not use the unions at max application limits without consulting ROTOFLUX.
Catalogs
No catalogs are available for this product.
See all of ROTOFLUX s.r.l.‘s catalogsOther ROTOFLUX s.r.l. products
