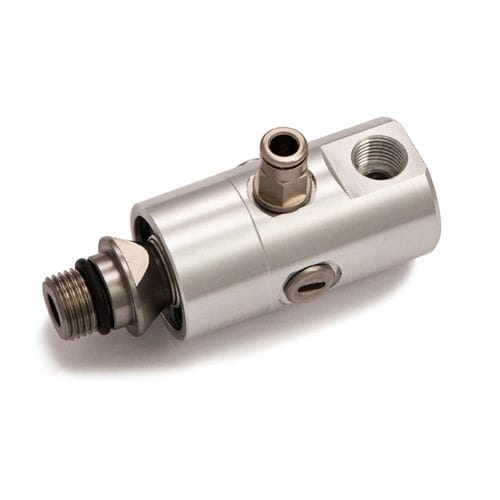

Refrigerant fluid rotary union A series
for machine toolswith sealhigh-speed

refrigerant fluid rotary union
refrigerant fluid rotary union
refrigerant fluid rotary union
refrigerant fluid rotary union
refrigerant fluid rotary union
Add to favorites
Compare this product


Characteristics

Medium
for refrigerant fluids
Applications
for machine tools
Other characteristics
with seal, high-speed
Rotational speed

10,000 rpm, 15,000 rpm
(62,831.85 rad.min-1, 94,247.78 rad.min-1)

Pressure

40 bar, 100 bar
(580 psi, 1,450 psi)

Nominal size

0.25 in, 0.375 in

Description

The unions of the model A have been designed for machine tool spindles rotating at high speed with fluid passing through or dry when needed. The seals, balanced and microlapped, remain always closed without problems both with fluid passing through (wet run) or without fluid (dry run). Do not use the unions at max application limits without consulting ROTOFLUX.
