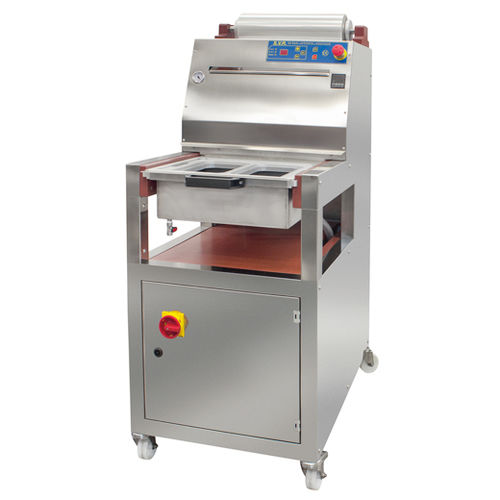

Linear array tray sealer SVR

semi-automaticvacuum

• Semi automatic vacuum/MAP sealing machine for performed trays in PP, PE, PS, PET, AL etc. • Teflon coated sealing plate; • Profile cutting to the tray size with possibility to create an easy peel angle to facilitate the tray opening; • Digital temperature controller with PT 100 probe; • 10 storable programs (possibility to set time for sealing, vacuum, gas and pause); • Extra vacuum and extra gas functions; • Pressure sensor for vacuum and gas; • Structure in stainless steel, aluminium and polythene; • Moulds made on tray samples for any shape ; • Tools easy to change and interchangeable with mod. SVR BASIC, TURN, RAPIDA + and EASY; Optional: • Version “only sealing” (mod. SPR); • Larger version to seal trays up to 410 x 340 X 120 mm.; • Possibility to seal trays up to h 230 mm.; • Special vacuum pump for gas mixtures with high % of oxygen; • Automatic drawer injection/ejection; • Inside compressor; • Photocell for printed film; POWER: 230 V. - 50/60 HZ P + N + PE POWER CONSUMPTION: 2,5 KW. AIR SUPPLY: 5 NL/cycle WEIGHT: Kg. 150 MAX. CONTAINER DIMENSION: mm. 350 x 270 x h. 120 MACHINE DIMENSIONS: mm. 570 x 800 x h. 1400 VACUUM PUMP: 25 m3 MAX. FILM WIDTH: mm. 400 PRODUCTIVITY VAC-GAS/ONLY SEALING: 3/5 cicli/min
