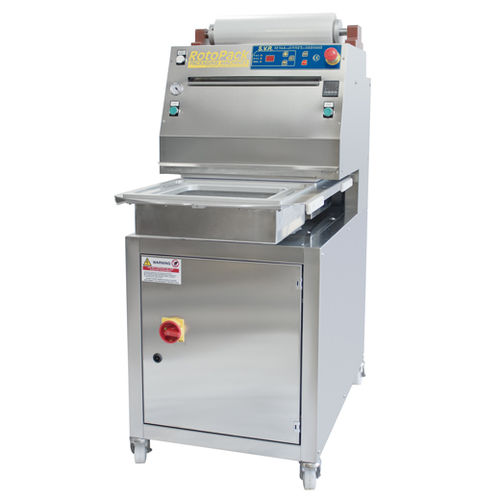

Rotary tray sealer SVR TURN

semi-automaticvacuum

• Semi automatic vacuum/MAP sealing machine for performed trays in PP, PE, PS, PET, AL etc. with manual rotary table that allows to load and unload trays while the machine performs the cycle; • Tools easy to change and interchangeable with mod. SVR, SVR BASIC, RAPIDA + and EASY; • Pressure sensor for vacuum and gas; • Teflon coated sealing plate; • Profile cutting to the tray size with possibility to create an easy peel angle to facilitate the tray opening; • Digital temperature controller with PT 100 probe; • 10 storable programs (possibility to set time for sealing, vacuum, gas and pause); • Extra vacuum and extra gas functions; • Structure in stainless steel, aluminium and polythene; • Moulds made on tray samples for any shape ; • Fast tool change; Optional: • Special vacuum pump for gas mixtures with high oxygen%; • Photocell for printed film; POWER: 400 V. - 50/60 HZ P+N+PE POWER CONSUMPTION: 3 KW AIR SUPPLY: 5 NL/ciclo WEIGHT: Kg. 170 MAX. CONTAINER DIMENSION: mm. 350 x 270 x h. 100 MACHINE DIMENSIONS: mm. 570 x 1250 x h. 1360 VACUUM PUMP: 40 m3 MAX. FILM WIDTH: mm. 400 PRODUCTIVITY VAC-GAS/ONLY SEALING: 4/6 cicli/min
