actuator heating system
ExPolar, InPolar

Add to MyDirectIndustry favorites
Compare this product

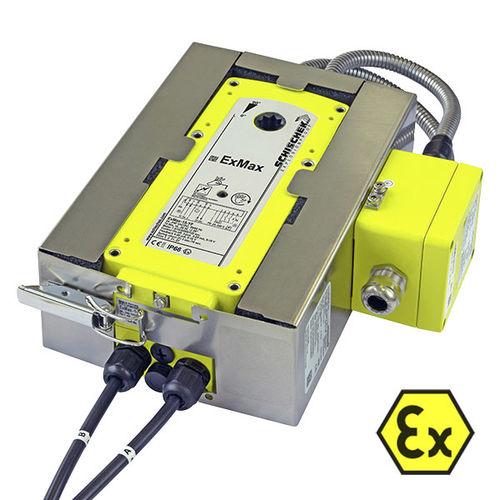

actuator heating system actuator heating system - ExPolar, InPolar
{{requestButtons}}

Characteristics

  • Options:

    for actuators

Description

Controlled heating system for use with Max actuators under sub-zero temperatures down to −50 °C

• 24/48 V AC/DC, 120/240 V AC
• 60 W
• −50 °C … +60 °C
• ExPolar for zone 1, 2, 21, 22
• InPolar for safe area
• For all types of gases, mists, vapours and dusts in zones 1, 2, 21 and 22
• Control thermostat monitors ambient temperatures and heat levels
• Robust heating including reversible temperature shutdown (thermostat)
• Easy to install and dismantle
• Stainless steel housing, IP66 protection
• High quality, UV-resistant insulation
• Can be retrofitted
• Electrical supply via prefitted terminal box
• All add-ons can continue to be used (note operating temperatures!)

Types:
ExPolar-…-MS (size S, for use in Ex area)
ExPolar-…-MM (size M, for use in Ex area)
InPolar-…-MS (size S, for use in safe area)
InPolar-…-MM (size M, for use in safe area)

Available for:
ExMax / RedMax / InMax actuators size S or M

Further information and technical details on request!
