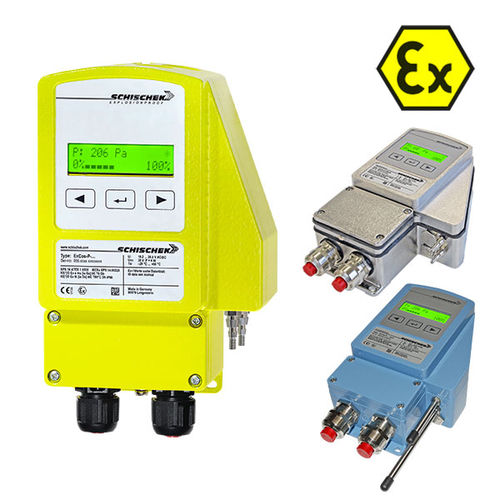

Relative pressure transmitter ExCos-P
differentialmembraneanalog

relative pressure transmitter
relative pressure transmitter
relative pressure transmitter
relative pressure transmitter
relative pressure transmitter
Add to favorites
Compare this product


Characteristics

Pressure type
relative, differential
Technology
membrane
Output signal
analog
Mounting
wall-mount
Other characteristics
stainless steel, with display, programmable, low pressure, for HVAC systems, ATEX, explosion-proof, IP66
Process temperature

Max.: 50 °C (122 °F)

Min.: -20 °C (-4 °F)

Pressure range

Max.: 7,500 Pa (1.09 psi)

Min.: 100 Pa (0.01 psi)

Description

Electrical, explosion proof transmitter with display series ExCos-P for differential pressure control in HVAC systems. - Certified according to ATEX, IECEx and more - use in hazardous locations - for all kind of gas, mixtures, vapours and dust - Interface in the safe area is not required - installation of intrinsic safe circuit is not required - saves cost, space and guarantees safety - all parameters can be adjusted on site without additional tools - 24 VAC/DC supply - Measuring range ± 100 Pa, ± 250 Pa, ± 600 Pa, ± 1250 Pa, ± 2500 Pa, ± 5000 Pa, ± 7500 Pa - Working range adjustable - Output 0-10 VDC and (0)4-20 mA, slectable - actual value indication - Aluminium housing IP66 - Dimensions (H × W × D) 180 × 107 × 66 mm - Weight approx. 1 kg, VA version approx. 2,3 kg - integral Ex-e terminal box - Stainless steel version or with offshore/marine coating optional - Series ExCos-P for use in Zone 1, 2, 21 and 22 - Series RedCos-P for use in zone 2 and 22 - Series InCos-P for use in safe area (industrial applications)
