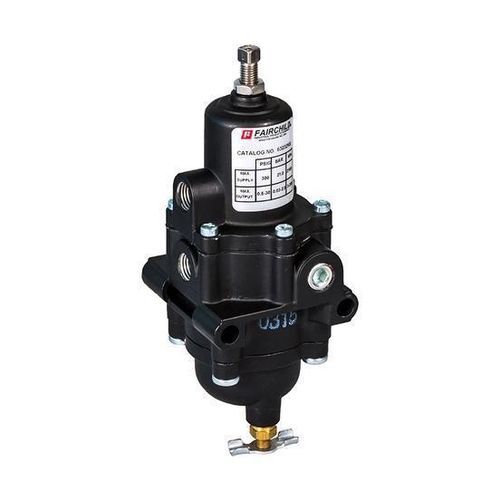

Air filter-regulator M63

liquidwatercompressed air

Description
The Fairchild M63 (Model 63N variant) is a filter regulator designed for severe-service conditions and sulfide stress crack resistant materials, suited to oilfield and related equipment. It integrates a 5 micron filter within a drip-well bowl and delivers the highest flow capacity in its class.

Features

• Control sensitivity 1 in water column and integral relief valve for stable set point despite supply pressure changes
• Three output pressure ranges: 0.5-30 psi (0.03-2 BAR, 3-200 kPa) and up to 2-120 psi (0.14-8 BAR, 14-800 kPa)
• Flow capacity up to 25 SCFM (42.5 m3/hr)
• Canadian Registration (CRN) for all territories and provinces
• High flow capacity to optimize process throughput
• Standard 5-micron filter to minimize internal contamination
• Complies with NACE MRO175 for harsh environments
• Epoxy-coated finish with stainless trim for corrosion resistance
• Non-bleed design to reduce consumption
• Integral relief valve with soft relief seat for responsive, repeatable operation
• Standard gauge port for easy pressure gauge mounting
• Filter dripwell drain plug for easy liquid removal
• Standard tapped exhaust for fast venting
• -60 °F low temperature rating for consistent low-temperature performance

Technical specifications

• Model designation: M63 (Model 63N variant referenced)
• Compliance: NACE MRO175
• Filter element: 5 micron (integral in drip-well bowl)
• Flow capacity: up to 25 SCFM (42.5 m3/hr)
• Output pressure ranges: 0.5-30 psi (0.03-2 BAR, 3-200 kPa) and up to 2-120 psi (0.14-8 BAR, 14-800 kPa)
• Relief: Integral relief valve (soft relief seat)
• Exhaust: Standard tapped exhaust
• Gauge: Standard gauge port
• Drain: Filter dripwell drain plug
• Finish & trim: Epoxy-coated finish with stainless trim
• Design: Non-bleed
• Temperature rating: down to -60 °F
• Certifications / registrations: Canadian Registration (CRN) across territories/provinces
