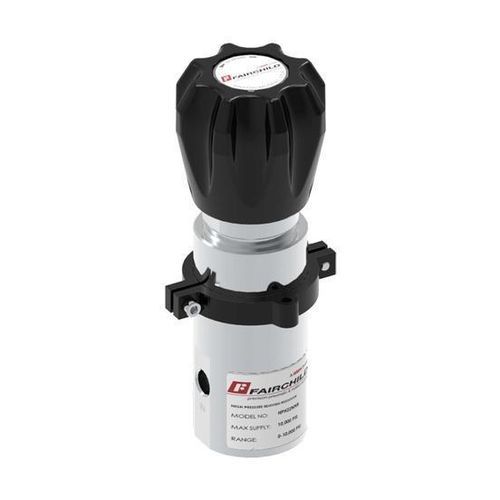

Compressed air pressure regulator and reducer HPH

for oilpistonstainless steel

Product Overview
Fairchild HPH high-pressure hydraulic pressure-reducing regulator is designed for hydraulic and pneumatic systems with inlet and outlet pressures up to 10,000 psig / 690 bar. A tapped exhaust port permits capture of vented media. An age-hardened stainless steel alloy seat (MP35N) provides high strength, toughness and corrosion resistance.

Features

• Cartridge-style service insert for quick inline repair
• NACE-compatible design
• Six pressure ranges available
• High-impact adjustment knob
• Ceramic (zirconia) main valve for severe-service applications
• Piston-sensed design for safety and reliability
• Segregated captured vent for controlled relief media handling

Technical Specifications

• Model: HPH
• Brand: Fairchild
• Type: High-pressure hydraulic / pressure-reducing regulator
• Maximum inlet/outlet pressure rating: 10,000 psig / 690 bar
• Sensing: Piston-sensed design
• Main valve material: Ceramic (zirconia)
• Seat material: Age-hardened stainless steel alloy (MP35N)
• Exhaust: Tapped exhaust port for capture of vented media
• Serviceability: Cartridge-style service insert for quick inline repair
• Compliance: NACE-compatible design
• Controls: High-impact adjustment knob
• Available options: Six pressure ranges
