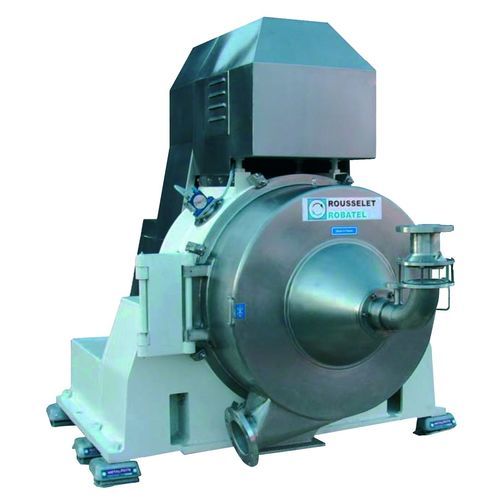

Process centrifuge EC seriesdewateringfloor-standingvertical
Add to favorites
Compare this product
Characteristics
- Applications
- process
- Function
- dewatering
- Configuration
- floor-standing
- Orientation
- vertical
- Other characteristics
- continuous, basket
- Rotational speed
2,300 rpm, 3,000 rpm, 3,600 rpm
(14,451 rad.min-1, 18,850 rad.min-1, 22,619 rad.min-1)
Description
Machine to be installed on a ground or mezzanine floor.
Hinged casing for full opening and easy access to the basket.
Separated feeding and washing pipes and outlets.
Vibrator on casing for easier solid discharge.
Continuous running particularly suitable for most continuous chemical processing lines.
Wide application range:
-G effect from 2000 to 2500.
-Temperature from 0 to 200° C.
-Solid particle size from 50 microns.
High output up to 10 tons/hour.
Minimum vibration transmission due to centrifuge mass and heavy-duty antivibration pads.
Torque limitation between basket and screw.
