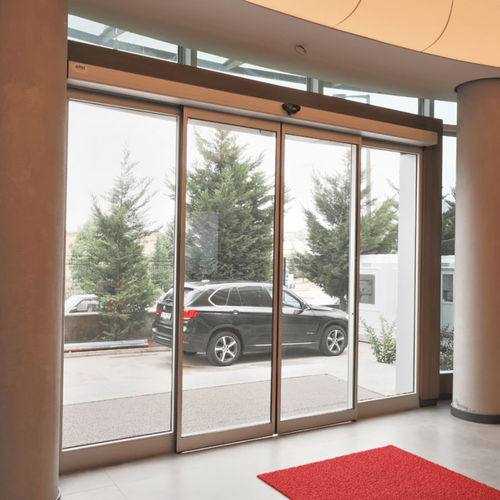

Sliding door iCat® A110

anodized aluminumplasticfor hospitals

Thanks to its compact dimensions, the iCat® A110 fits perfectly into any architectural environment, even in confined spaces. FRONT COVER Available in natural or anodized aluminum. Plastic safety "parachute" that can be easily installed together with the fuselage. Narrow and wide series wings. Designed for locking in open position for easy installation. DRIVE GROUP 24 Vdc gear motor with optical reader. Control unit. Complete with 2 wheels or 4 wheels (for the iCat A110 2-wing version)... WHEELS Aluminum 2 polyamide support wheels. Wheel height adjustment (+-) 7,5 mm iCat A110 CONTROL UNIT iCat control unit microprocessor with locking batteries and electromechanical locking system. 220 Vac circuit on/off power unit. Removable terminal panel. Automatic adjustments Open and closed position definition. Speed selection, optimal acceleration or deceleration. Photocell test. 150 N force impact protection device during operation. Speed adjustment and KUR application option possible directly on the card (no external program required) RESET (restart) function. 4 adjustable output points. 2 emergency entry points. Locking function. Alarm function. LCD display to detect status and damage. Opening and closing speed adjustment. Pause timing. Night pause. Motor lock.
