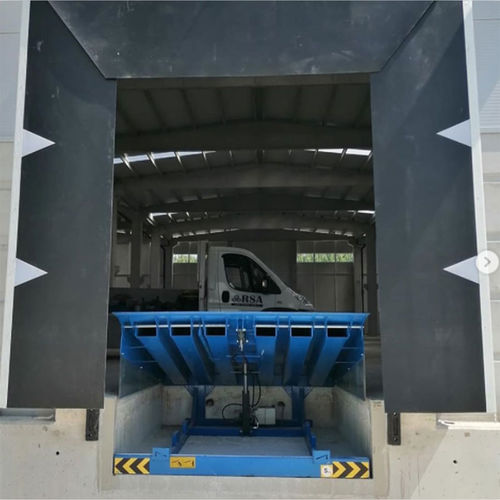

Manual dock leveler iCat®

hydraulicverticaltelescopic

iCat RSA Model dock levelereliminate the headlights between the building and the vehicle, enabling faster, safer and more economical loading and unloading. iCat RSA Model Loading Dock Ramps, you can choose Hinged Ramp, Mobile Ramp, Telescopic Ramp, Vertical Ramp or Manual Mini Ramp models according to your needs and physical space. Made of strong profile Ability to stop and use in the desired position Platform made of anti-slip steel 6/8 mm one piece tear patterned sheet metal and tongue 12/14 mm tear patterned sheet metal. Ramp moving cylinder, tongue lifting cylinder, tongue supporting profile leg Hydraulic lifting motor located under the ramp as standard. Economic ramp chock made of rubber with dimensions 100mmx290mmx800mm 200*450*105 mm or 200*300*105 Ramp wedges (Optional) MODE OF OPERATION: 380 V MOTOR, HYDRAULIC OPERATION TECHNICAL SPECIFICATIONS Ramp dimensions: 2000 mm x 2500 mm x 600 mm Maximum lifting distance: +650mm Minimum lowering distance: - 300mm Engine power 1.1 KW Maximum carrying capacity Dynamic: 6,000 kg; Static: 9000 kg Operating temperature: -10 C ; +40 C Control panel safety class: IP55 Ramp color: RAL 5017 BLUE Platform material : 8/10 mm teardrop patterned sheet metal Tongue material: 12/14 mm teardrop patterned sheet metal Telescopic Tongue Length: 600 mm Motor voltage: 380 V 50 Hz SUBJECT 6 TONS HINGED LOADING RAMP TECHNICIAL SPECIFICATIONS Ramp dimensions Maximum lifting distance +650mm Minimum download distance - 300mm Motor power 1.1KW Maximum carrying capacity Operating temperature - 10 C ; +40C Control panel security class IP55 ramp color RAL 5017 platform material
