Loop tester SMT-2000

capacitivecompactdigital

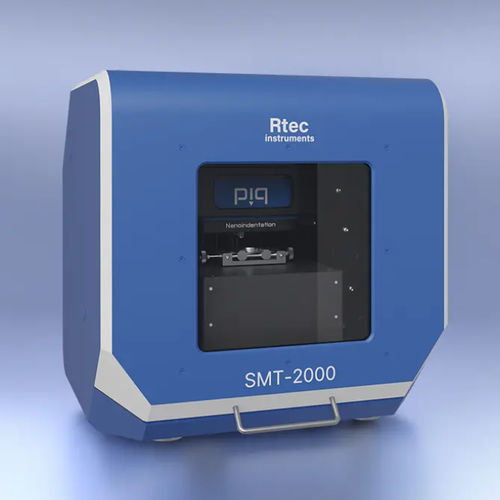

The SMT-2000 PiQ Nanoindenter is designed to provide precise and reliable measurements of surface properties such as hardness and elastic modulus. Notably, it is fully compliant with international standards for instrumented indentation testing (IIT), including ISO 14577 and ASTM E2546-15, ensuring that all measurements meet the rigorous demands of global industry practices. Key Features: Closed-Loop Down Force Control Real-time measurement and control of applied force Programmable constant, linear, or step force profiles True Force and True Depth Sensors Real force and depth sensors with unique capacitive technology Smart Nanoindenter Head Force programmable and removable reference for the lowest frame compliance (< 0.01 mm/N) X, Y, and Z Motorized Tables For indentation matrices and fully automated processes, a 3-axis motorized stage with a resolution of 20 nm High Reliability – Robust Design Soundproof enclosure for a compact SMT-2000 platform with integrated vibration-damping Optional Optical Microscope Recognizing the importance of visual inspection, the SMT-2000 can be equipped with an optical microscope for precise test area selection and post-test impression visualization (5 Mpx camera) Full Digital Controller Embedded state-of-the-art data acquisition controller connected with only one USB cable Compliant with International Standards Fully adheres to ISO 14577 and ASTM E2546-15 standards, ensuring that measurements are consistent with global industry requirements What Is A Nanoindentation Test? A nanoindentation tester is an instrument used to measure the mechanical properties of materials on a microscopic scale, typically at the nanometer level.
