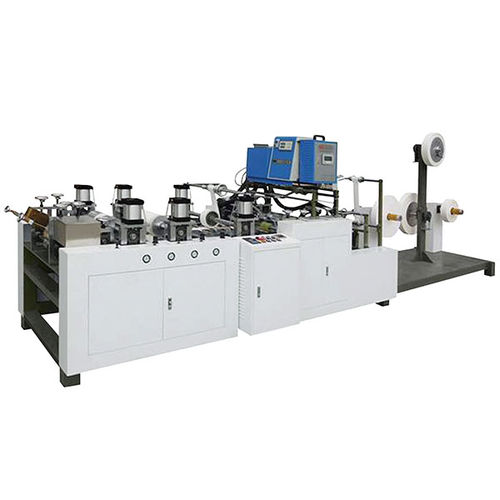

machine was developed specifically for the new generation of paper Handle Machine. This machine is sandwiched between two layers of kraft paper rope middle, after gluing, lamination, and then automatically cut into a single handle. Paper bag machine is the ideal complementary product lines.
Features:LFP-G-Features
1.use Hot-melt glue not falling.
2.easy to operate, fast.
Type - LFP-G-1 -
Handle Spacing (W) - 95 mm
Paper Board Length(L) - 152 mm
Paper Board Width(h) - 40 mm
Paper Rope Width(D) - 12 mm
Rope Height(H) - 100 mm
Max.Speed - 100 pcs/min
Paper Thickness - 80-120 gsm
Max.Roll diameter - 700 mm
Reel inner diameter - 76 mm
Total Power - 10 Kw
Weight of Machine - 2800 kg
Overall Dimension(LxWxH) - 5000×1500×1500 mm
Type - LFP-G-2
Handle Spacing (W)92/107mm
Paper Board Length(L)190 mm
