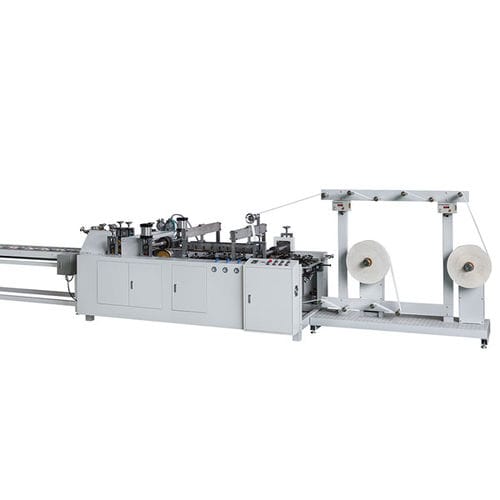

Gluing paper handle making machine LRP-Wlaminationwith cuttingwater-based adhesive
Add to favorites
Compare this product
Characteristics
- Operation
- with cutting, gluing, lamination
- Other characteristics
- water-based adhesive
- Handle spacing
45 mm, 64 mm, 79 mm, 95 mm, 110 mm
(2 in, 3 in, 3 in, 4 in, 4 in)- Paper board length
95 mm, 127 mm, 158 mm, 190 mm, 222 mm
(4 in, 5 in, 6 in, 7 in, 9 in)- Paper board width
Max.: 40 mm
(2 in)Min.: 30 mm
(1 in)- Rope diameter
Max.: 5 mm
(0 in)Min.: 3 mm
(0 in)- Throughput
200 p/min
- Overall length
4,700 mm
(185 in)- Overall width
1,300 mm
(51 in)- Total height
1,500 mm
(59 in)
Description
machine was developed specifically for the new generation of paper Handle Machine. This machine is sandwiched between two layers of kraft paper rope middle, after gluing, lamination, and then automatically cut into a single handle. Paper bag machine is the ideal complementary product lines.
Features
1.Water-based adhesive has low cost and is not easy to fall off at low temperature.
2.easy to operate, fast.
Paper Thickness - 80-120 gsm
Paper Roll Width - 60-80 mm
Max.Roll diameter - 1000 mm
Reel inner diameter - 76 mm
Total Power - 4.5 Kw
Weight of Machine - 1500 kg
