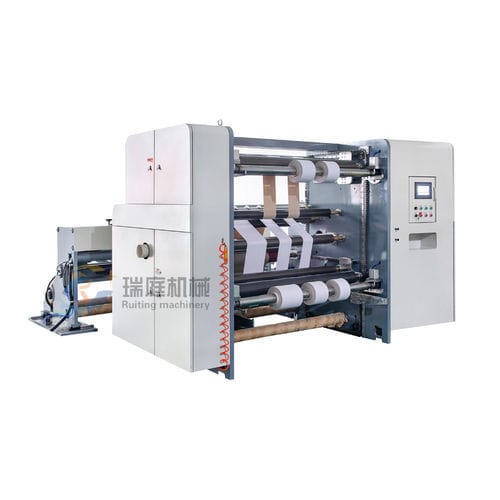

Automatic slitting machine

automatic slitting machine
automatic slitting machine
Add to favorites
Compare this product




1.This machine adopts PLC(siemens) touch screen control.Three motor servocontrol and automatic taper tension, central surface reeling. Frequency convertertiming for main motor,keeping speed up and stable operation. 2.It has the functions of auto metering, automatic alarm,etc.AdoptAand B pneumatic shaft structure for rewinding,easy for loading and unloading. 3.It adopts photoelectric automatic error correction adjustment system for unwinding,anomalistic materials will be easy slit. 4.Equipped with automatic waste film blowing device. 5.Automatic material loading by pneumatic,matched with air. Max web width 1100mm Max rewinding diameter 1000mm Max. unwinding diameter 1400mm Min width 30mm Power Supplier 380V/50HZ Cutting precision 0.2mm Cutting speed 350m/min Overall dimensions(L*W*H) 3.5*3.1*1.9m Machine weight 3200kg
