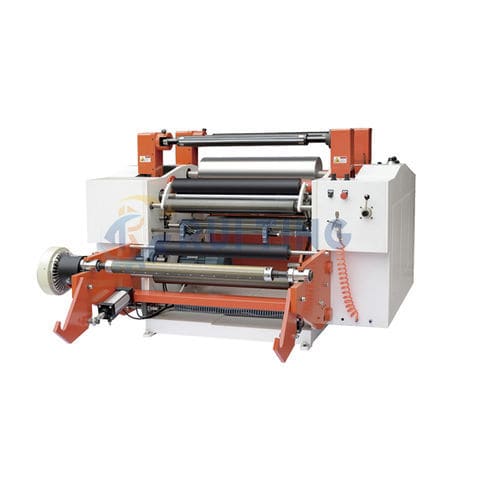

Aluminum foil slitter-rewinder PMFQ-600
for plastic filmsfor paperautomatic

aluminum foil slitter-rewinder
aluminum foil slitter-rewinder
aluminum foil slitter-rewinder
aluminum foil slitter-rewinder
aluminum foil slitter-rewinder
Add to favorites
Compare this product


Transformed product
for paper, for plastic films, for aluminum foil
for the packaging industry
Working width

600 mm
(24 in)


150,000 mm/min
(98 in/s)


PMFQ-600 surface slitter rewinder machine is applicable for slicing small scale a tube paper, paper straw,plastic sheet,aluminum foil,PVC,plastics film and insulating material etc.The host motor adopts frequency speed regulation.The unwinding procedure adopts auto tension magnetic powder control,auto photoelectric error correction.The winding procedure is controlled by three magnetic powder clutches and linkage(air pressure)of host motor.Meanwhile using center winding and surface contact will have the function of winding interleaving of double shafts,never seam,meter counting settlement in advance,and auto stop running etc. Product parameters: Max width of raw material 600mm Max diameter of raw material 600mm Cutting speed 150m/min core inner diameter 25-76mm rewinding diameter 500mm Min. itemize width 3mm total power 5.5KW Machine weight 2000kg
