- Machine-tools
- Cutting Tool
- Steel set of drill bits
- RUKO GmbH Präzisionswerkzeuge

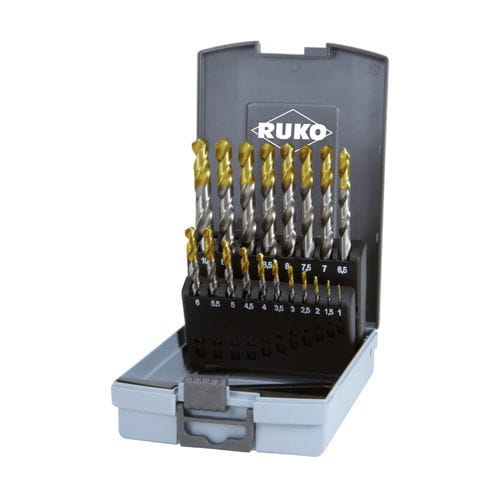

Non-ferrous metal set of drill bits 2501214TROfor steelfor stainless steelfor brass
Add to favorites
Compare this product
Characteristics
- Drilled material
- for plastics, for cast iron, for stainless steel, for brass, for non-ferrous metals, for steel
- Drill bit material
- HSS, HSS-TiN
- Other characteristics
- DIN 338, coated, with TiN-coated bit, twist, straight shank
- Diameter
Min.: 1 mm
(0.04 in)Max.: 10 mm
(0.39 in)
Description
Product description
High-performance, fully ground twist drill set manufactured in HSS (high speed steel) to DIN 338, Type N. Each drill features a split point (cross grind) for improved centring and reduced feed force. TiN (titanium nitride) tip coating extends tool life; cooling/lubrication is recommended for optimal performance.
Size range
Ø 1.0 - 10.0 mm in 0.5 mm steps
Package contents
Product identifiers / basic data
Item number: 2501214TRO
SAP item number: 1000022310
Net weight: 375 g
Drilling depth: 5 x diameter
GTIN / EAN: 4007140372581
Customs tariff (HS) code: 82075060
Technical data
Tip grinding: Shape C (split point)
Type: N
Tolerance: h8
DIN: 338
Material: HSS
Coating: TiN
Cutting direction: right cutting
Shaft: cylindrical
Point angle: 118°
Spiral angle: 25° - 30°
Groove profile: normal
Core: normal
Areas of application
Main application
Other application
Characteristics / technical specifications
High-performance, fully ground twist drill set manufactured in HSS (high speed steel) to DIN 338, Type N. Each drill features a split point (cross grind) for improved centring and reduced feed force. TiN (titanium nitride) tip coating extends tool life; cooling/lubrication is recommended for optimal performance.
Size range
Ø 1.0 - 10.0 mm in 0.5 mm steps
Package contents
- 19 pcs.
Product identifiers / basic data
Item number: 2501214TRO
SAP item number: 1000022310
Net weight: 375 g
Drilling depth: 5 x diameter
GTIN / EAN: 4007140372581
Customs tariff (HS) code: 82075060
Technical data
Tip grinding: Shape C (split point)
Type: N
Tolerance: h8
DIN: 338
Material: HSS
Coating: TiN
Cutting direction: right cutting
Shaft: cylindrical
Point angle: 118°
Spiral angle: 25° - 30°
Groove profile: normal
Core: normal
Areas of application
Main application
- Steel up to 900 N/mm²
- Brass
- Plastics
Other application
- Steel up to 1,100 N/mm²
- Stainless steel
- Bronze
- Cast iron
Characteristics / technical specifications
- Contents of package: 19 pcs.
- Size range: Ø 1.0 - 10.0 mm in 0.5 mm steps
- Material: HSS (high speed steel)
- Coating: TiN (titanium nitride)
- DIN: 338
- Type: N
- Tip grinding: Shape C (split point)
- Tolerance: h8
- Drilling depth: 5 x diameter
- Point angle: 118°
- Spiral angle: 25° - 30°
- Shaft: cylindrical
- Cutting direction: right cutting
- Net weight: 375 g
- GTIN / EAN: 4007140372581
