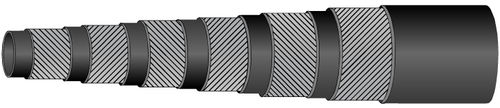

Hydraulic hose AVENGER H13A

elastomerspiral wire

Recommended For: Extremely high pressure hydraulic oil lines. The extra high working pressures and excellent impulse life when tested to SAE 100R13 test conditions result in, increased service life and minimise equipment downtime. Tube: Black, oil resistant synthetic rubber. Reinforcement: Sizes -12 & -16: Four alternating layers of spiralled high tensile steel wire. Sizes -20 to -32: Six alternating layers of spiralled high tensile steel wire. Cover: Black, oil resistant and abrasion resistant synthetic rubber. Highly visible layline branding for easy and permanent identification. No skiving required with T900 Series BITELOK Crimp Couplings. Temperature Range: From -40°C to +121°C (-40°F to +250°F). Working Pressure: Maximum working pressures are based on 4:1 safety factor (minimum burst to maximum working pressure). Flame Resistance: Complies with Flame Resistant requirements of Australian Standard AS 2660 and Method of Test AS 1180.10B. Meets Flame Resistant Designation “U.S. MSHA” of the US Department of Labor, Mine Safety and Health Administration.
