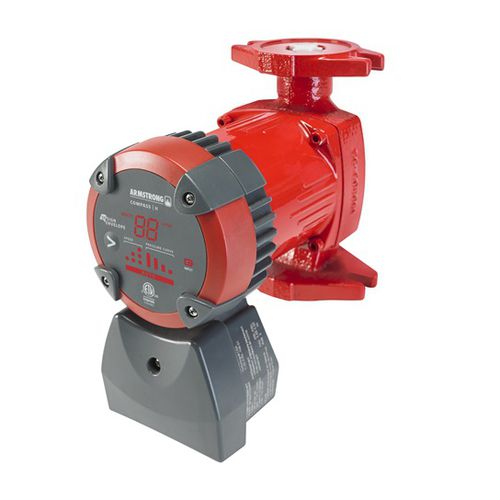

Circulator Compass H

circulator
circulator
circulator
circulator
circulator
circulator
Add to favorites
Compare this product


Description

ApplicationsResidential heating and cooling; potable water supply DescriptionThe Armstrong Compass H is an energy-efficient variable speed wet-rotor circulator. Designed to replace existing fixed speed circulators, with popular flange-to-flange dimensions, Compass H can be considered a universal replacement for all circulators in its capacity range. MaterialsCast iron and stainless steel volutes. ConfigurationEight operation modes with “Auto” algorithm, four Sensorless modes and three fixed speed modes. 50 Hz and 60 Hz designs Performance rangeUp to 20 USgpm (1.26 L/s) flow; up to 20 ft (6.1 m) head TemperatureMax ambient temp. 40°C; max water temp. 110°C Power Range5 W to 45 W Size1"

Catalogs

No catalogs are available for this product.

See all of S. A. Armstrong Limited‘s catalogs
